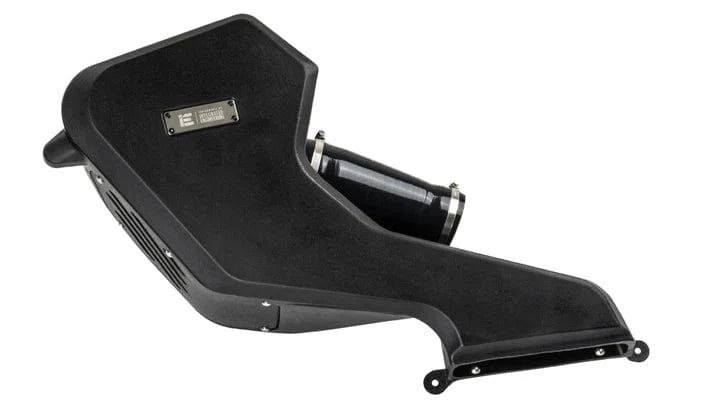

Seamless Design

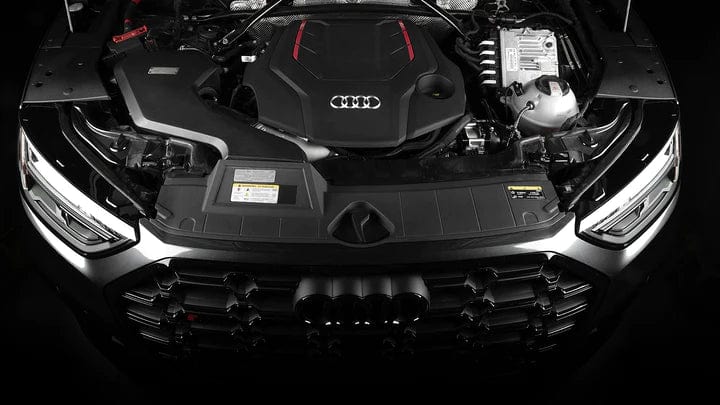

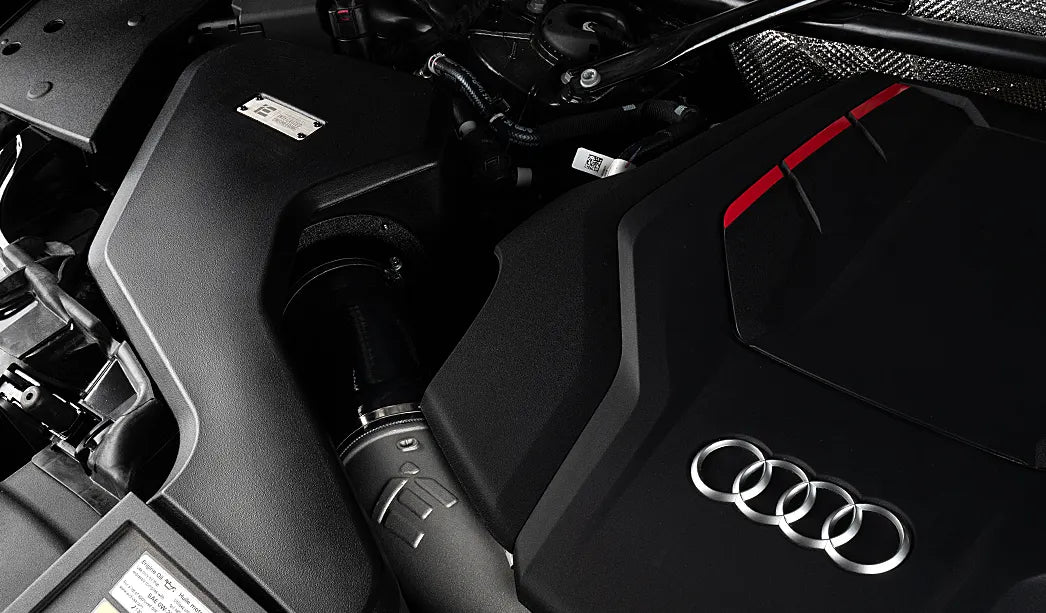

The entire intake is designed as a single piece airbox to offer a seamless and complete look with an above factory quality fit and finish.

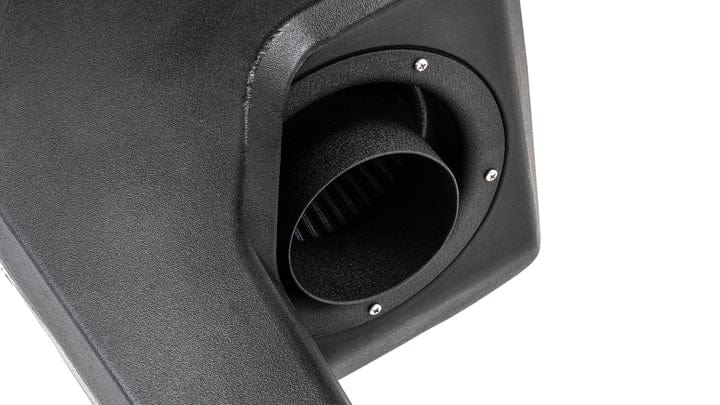

Built-in Velocity Stack
The built-in velocity stack creates a smooth transition from the large filter area to the turbo inlet. This motorsport design offers excellent laminar properties resulting in a very high inertia flow with reduced drag and power-robbing turbulence.
Optional Turbo Inlet
Our thermoplastic intake airbox is designed to accept our cast turbo inlet pipe to increase airflow over stock from 24% (intake only) up to 50.4% combined! Adding a turbo inlet further reduces significant air restrictions while maintaining the largest size possible from the airbox to the turbocharger.
Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.
You can purchase the turbo inlet here:
Integrated Engineering IE Audi B9 SQ5 3.0T Turbo Inlet Pipe
Hybrid Turbo Ready
The intake and turbo inlet combo makes upgrading to a hybrid turbo a simple bolt-in job. CNC-machined and o ring sealed adapter rings fit the stock or a variety of aftermarket turbos without hassle. The turbo inlet continually adapts to the turbo to not introduce any restrictions and maintain the largest size possible when upgrading turbos.
Multiple Pressure Zone

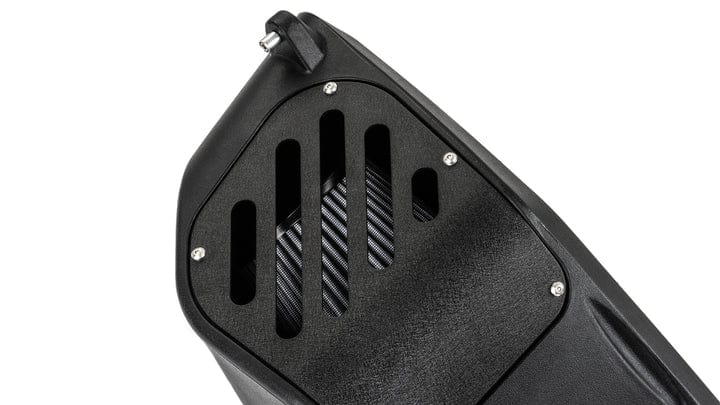

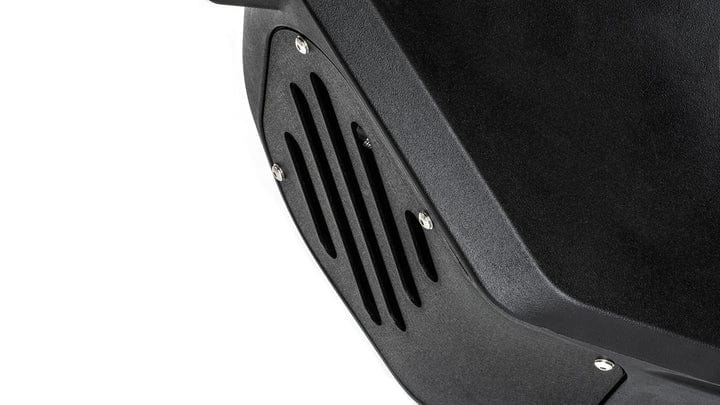

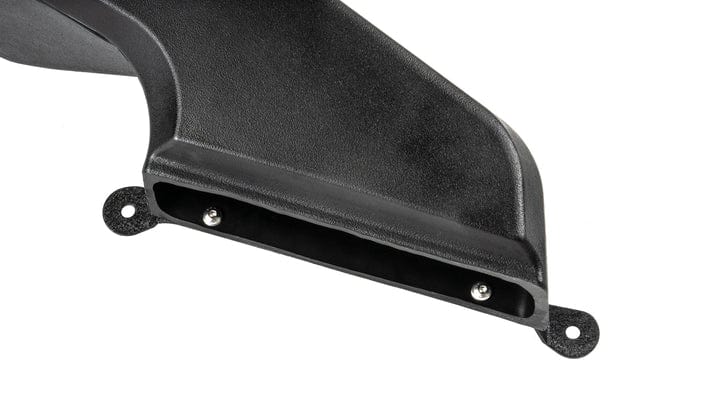

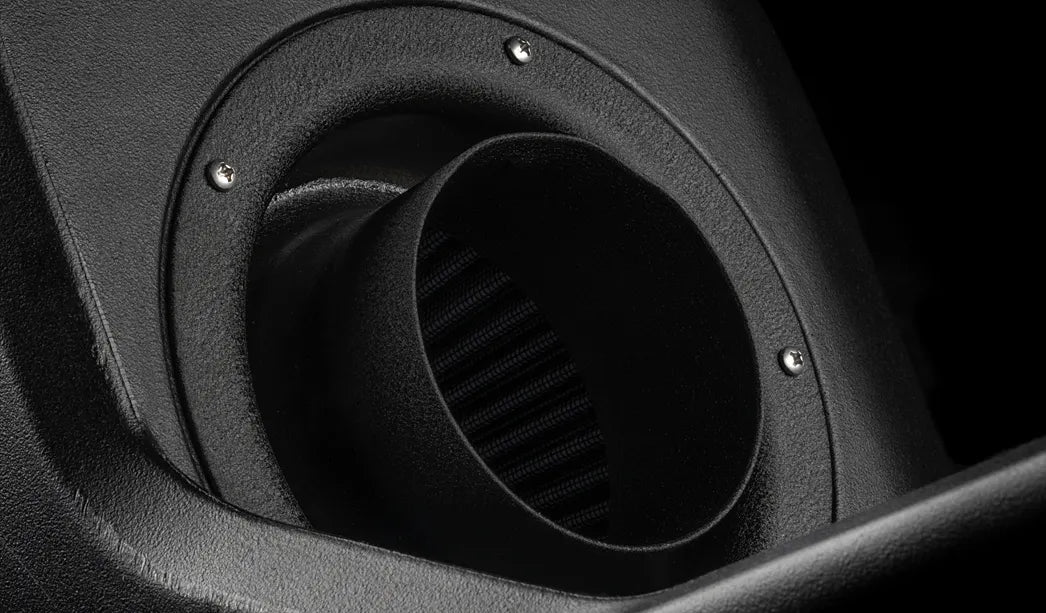

Multiple air supply avenues are used to guarantee airflow for any power level. High-pressure flow from the grille directly provides a ram air supply to the filter. If additional air demands are required, the intake will pull low-pressure air through the filter plate louvers as needed. This dual-zone design ensures your intake will never be a power limitation for even the most extreme builds.
Performance Sound
Your stock airbox is manufactured under regulations to perform only one job; mute all engine and turbo sound at any performance cost. Your new IE poly intake system will release the sweet sounds of turbo spool, engine throttle, and diverter blow-off that your S-class SUV deserves.

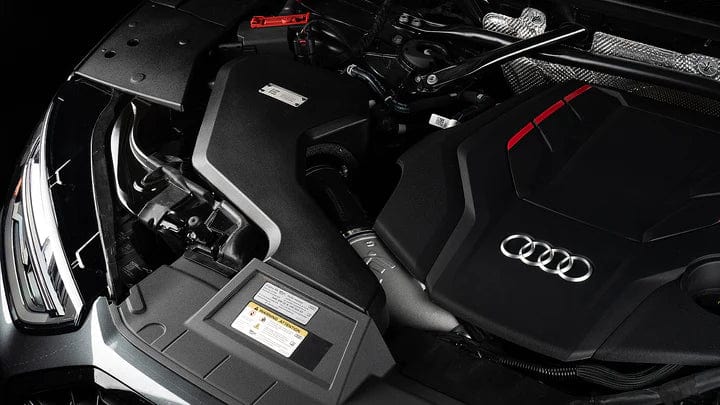

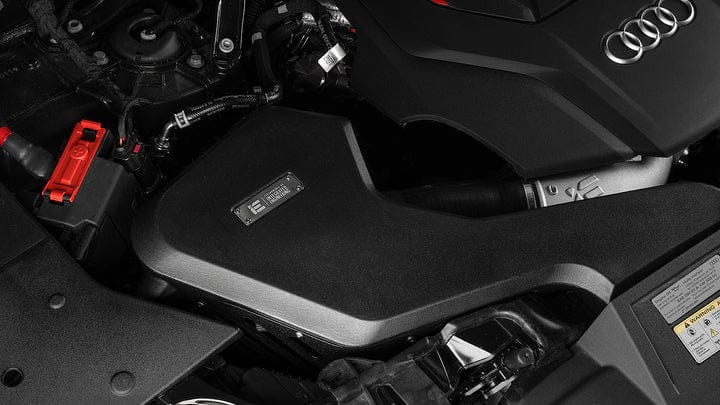

Precision Fit
3D scanning tools are leveraged to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. These high-resolution scans provide a digital environment that allows our engineers to take advantage of all available space while ensuring a perfect fit.
- ONE-PIECE CARBON FIBRE CONSTRUCTION
- UP TO +19HP & 21TQ POWER YOU CAN FEEL
- FLOW OPTIMIZED VELOCITY STACK MOTORSPORT DESIGN
Power Results
Every inch of IE's intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 19WHP and 21ft-lbs of torque, with even higher gains possible on hybrid turbo setups!
Flow Bench Testing
The proof is in the testing. Back-to-back flow bench results show constant and consistent CFM gains of up to 50.4% CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.
Flow Report
The following report details the above graph proving the efficiency gain of our performance intake system on the stock turbo.
| -IN. H20 | STOCK INTAKE | IE INTAKE & STOCK INLET | IE INTAKE & IE INLET |
|
-5 |
129 CFM |
160 CFM |
171 CFM |
|
-10 |
198 CFM |
228 CFM |
257 CFM |
|
-15 |
250 CFM |
282 CFM |
320 CFM |
|
-20 |
291 CFM |
325 CFM |
376 CFM |
|
-25 |
330 CFM |
365 CFM |
426 CFM |
|
-30 |
364 CFM |
404 CFM |
469 CFM |
| IE INTAKE & STOCK INLET | IE INTAKE & IE INLET | |
|
MAXIMUM INCREASE: |
+24% @ -5 in. H20 |
+32.6% @ -5 in/H20 |
Hybrid Turbo Flow Report
Upgrading to a hybrid turbocharger demands even more airflow. This flow result represent IE’s intake and inlet upgrades with a hybrid turbo.
| -IN. H20 | STOCK INTAKE | IE INTAKE & IE INLET |
|
-5 |
129 CFM |
194 CFM |
|
-10 |
198 CFM |
295 CFM |
|
-15 |
250 CFM |
370 CFM |
|
-20 |
291 CFM |
432 CFM |
|
-25 |
330 CFM |
486 CFM |
|
-30 |
364 CFM |
535 CFM |
| IE INTAKE & IE INLET | |
|
MAXIMUM INCREASE: |
+50.4% @ -5 in. H20 |
The above gains are a result of various design details:
- The 5" air filter surface area and increased air volume improve turbo efficiency.
- The internal velocity stack provides a low-turbulence transition from the filter to the inlet.
- High & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.
Install your new air intake using basic hand tools in no time. Our thermoplastic intake utilizes factory-style mounts that ensure a perfect and hassle-free fit.
Intake install time: 45 min
AUDI SQ5 2018-2023 (B9/B9.5) 3.0T Turbocharged
