This adapter kit is required for certain intake manifold installations, for example for the Integrated Engineering Audi Volkswagen 1.8T Transverse Intake Manifold (A3, S3, Golf & Jetta).

• Smooth transition between manifold and cylinder head port sizes
• Decreases intake temperatures and increases horsepower
• 12.5mm thickness decreases heat transfer drastically
• Easily install your IE Transverse 1.8T Intake Manifold on a small port head

Technical Details

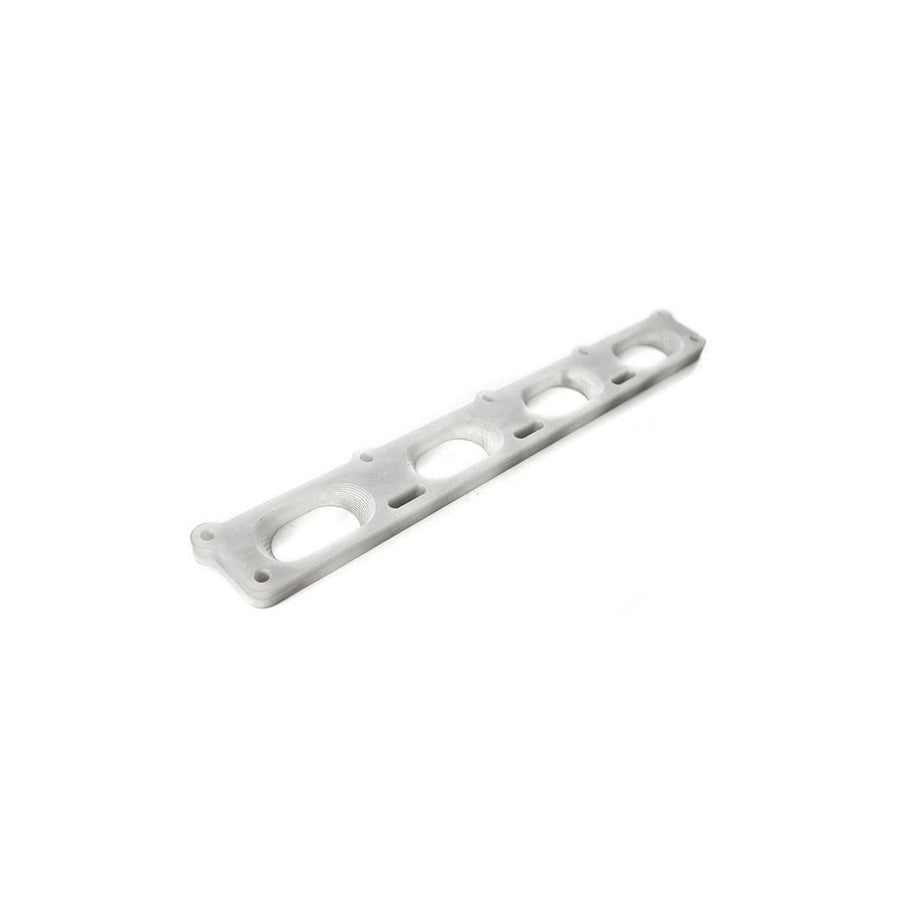

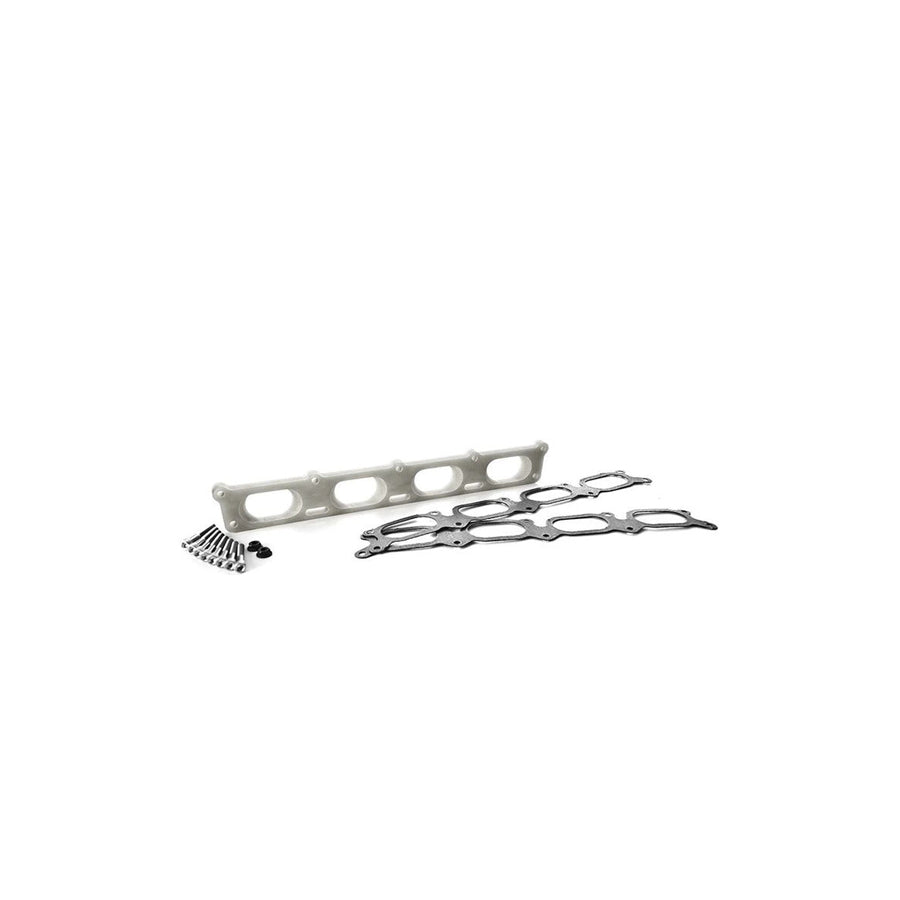

IE's phenolic transition spacer for your 1.8T engine delivers a smooth transition when installing a large port intake manifold to a small port cylinder head. The 12.5mm heat resistant material also acts as a phenolic spacer greatly reducing intake air temperatures increasing power. Includes all new extended hardware and two new intake manifold gaskets.

• Audi - TT 2000-2006 (MK1 - 8N) 1.8T 20V engines
• Audi - A3 1996-2003 (MK1 - 8L) 1.8T 20V engines
• Audi - S3 1996-2003 (MK1 - 8L) 1.8T 20V engines
• VW - Golf 1999-2005 (MK4) 1.8T 20V engines
• VW - GTI 1999-2005 (MK4) 1.8T 20V engines
• VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V engines

IEBAVA16

Manufactured by

Integrated Engineering (IE)
