Integrated Engineering Audi 3.0T High Pressure Fuel Pump HPFP Upgrade Kit (S4, S5, A6, A7, SQ5 & Q5)

Integrated Engineering Audi 3.0T High Pressure Fuel Pump HPFP Upgrade Kit (S4, S5, A6, A7, SQ5 & Q5)

£912.15 GBP
£1,023.74 GBP £912.15 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

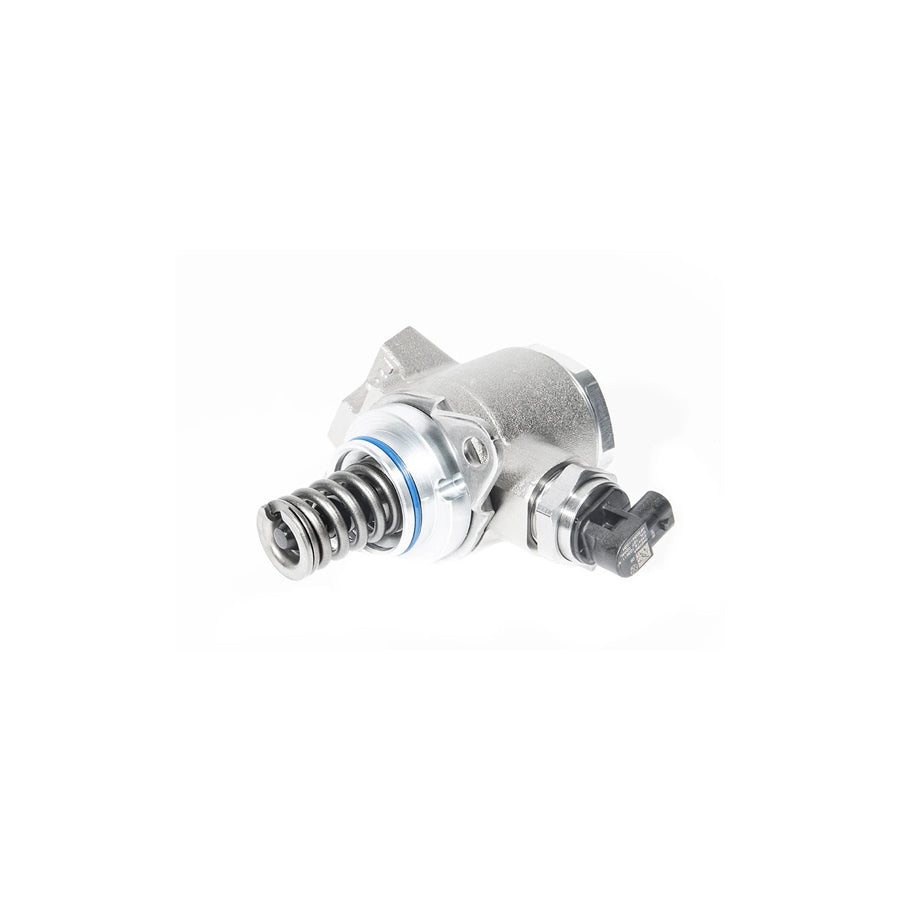

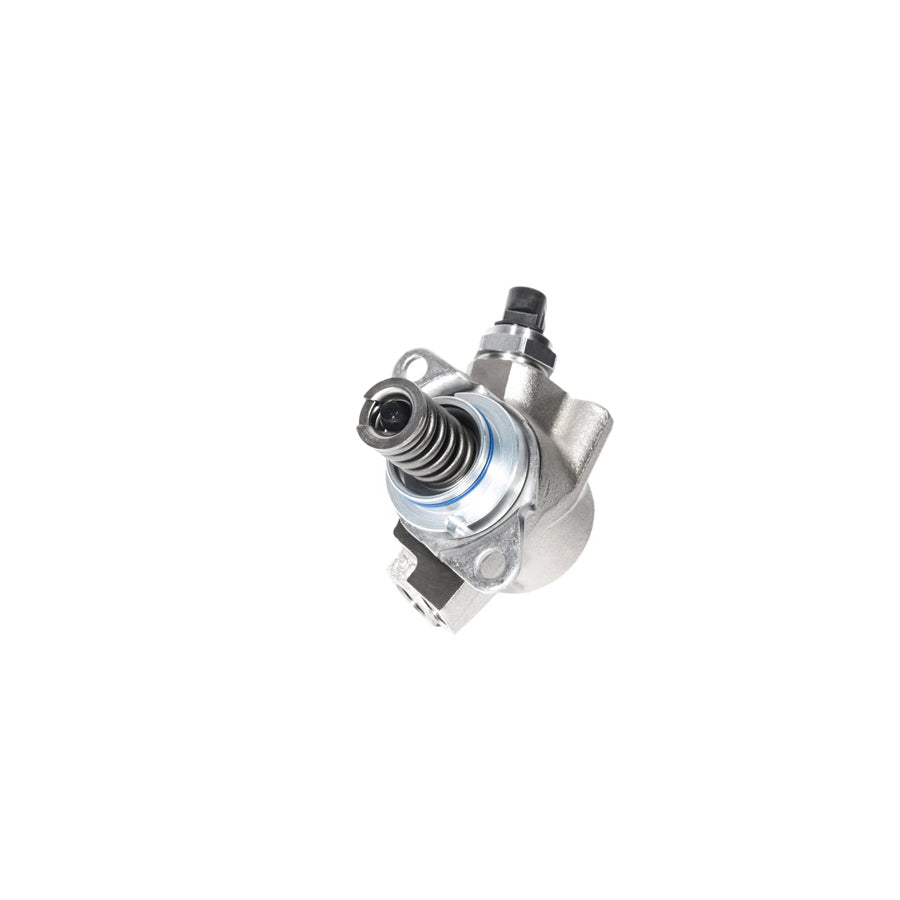

The IE HPFP (High Pressure Fuel Pump) Upgrade is the missing link to provide enough fuel for dual pulley setups attempting big power on higher octane fuels. The 11.67mm piston is the largest sized diameter possible within the fuel-pump body and offers 3% more flow than any competition on the market. Every assembly is hand measured to incredibly strict tolerances and assembled into a brand new OE pump body in a clean filtered environment for extreme reliability. Put the worry of fuel pressure issues behind you on your Audi supercharged 3.0T engine with IE's Performance HPFP upgrade.



  • Highest flowing HPFP upgrade on the market
  • Fully assembled pump in new OE housing for reliability
  • Fueling support for Stage 2 Dual Pulley Setups
  • Constant diameter piston design for long life operation
  • Finished with DLC (Diamond-Like Carbon) coating
  • Retains OE spring to avoid increased cam follower wear
  • Molybdenum disulphide impregnated seal defends against leaks
  • Individually tested and verified for extreme tolerances
  • Engineered, designed, & manufactured in the USA



Increased Displacement

Your HPFP provides extremely high fuel pressure (exceeding 1500psi) to the direct injection system on your Audi 3.0T supercharged engine. Fuel output and ultimately power is limited by the internal displacement of the pump. By increasing the bore and piston size of the pump internals, the HPFP upgrade is capable of producing much more flow. This higher-output HPFP design offers the fuel increase needed for those running Stage 2 Dual Pulley setups and looking to run higher octane fuels for aggressive race and track style driving.

  • 11.67mm diameter piston
  • 3% higher flow than any competitor
  • Largest displacement available

Integrated Engineering Audi 3.0T High Pressure Fuel Pump HPFP Upgrade Kit (A6, A7, SQ5 & Q5) Duco Car Parts UK

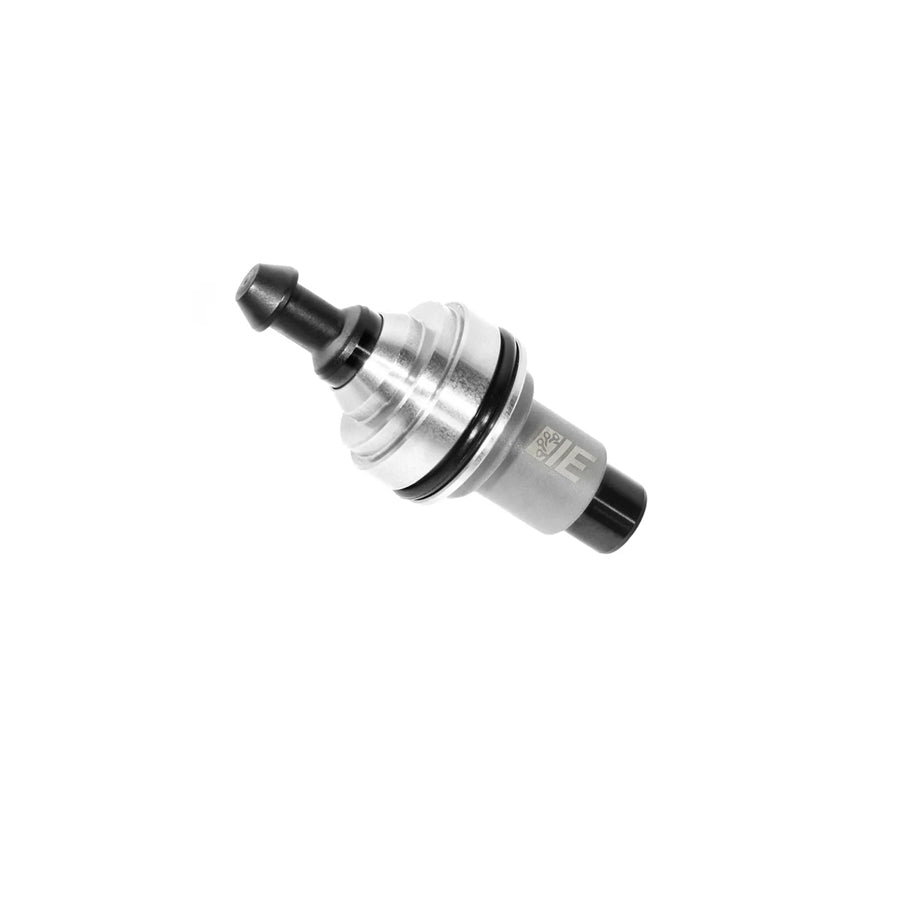

Precision Assembly

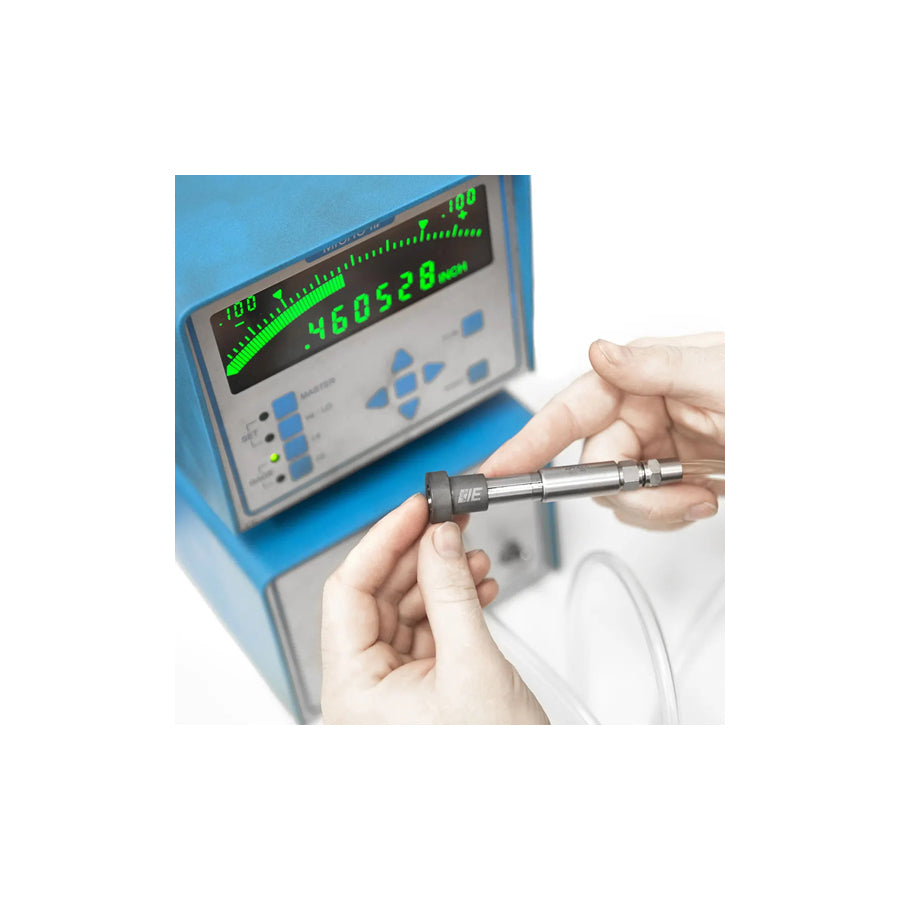

The internal assembly of your HPFP is a delicate balance of astonishingly high pressure and extremely delicate tolerances. Every piston and cylinder is a match set CNC machined to exacting sizes. Tolerances between the two are hand-tested using precise measurement gauge tools and verified down to 0.46055"! These tolerances are required due to the maximized size of our pump assembly and absolutely critical for HPFP reliability and function. Even the smallest contamination can cause pump wear or failure, to ensure this each pump is assembled in a clean environment with a Laminar flow hood. This is why IE only sells HPFP pumps fully assembled in new OE housings as to ensure reliability.

  • Verified critical tolerances
  • Ready to install complete pump
  • Clean environment assembled



Integrated Engineering Audi 3.0T High Pressure Fuel Pump HPFP Upgrade Kit (A6, A7, SQ5 & Q5) Duco Car Parts UK

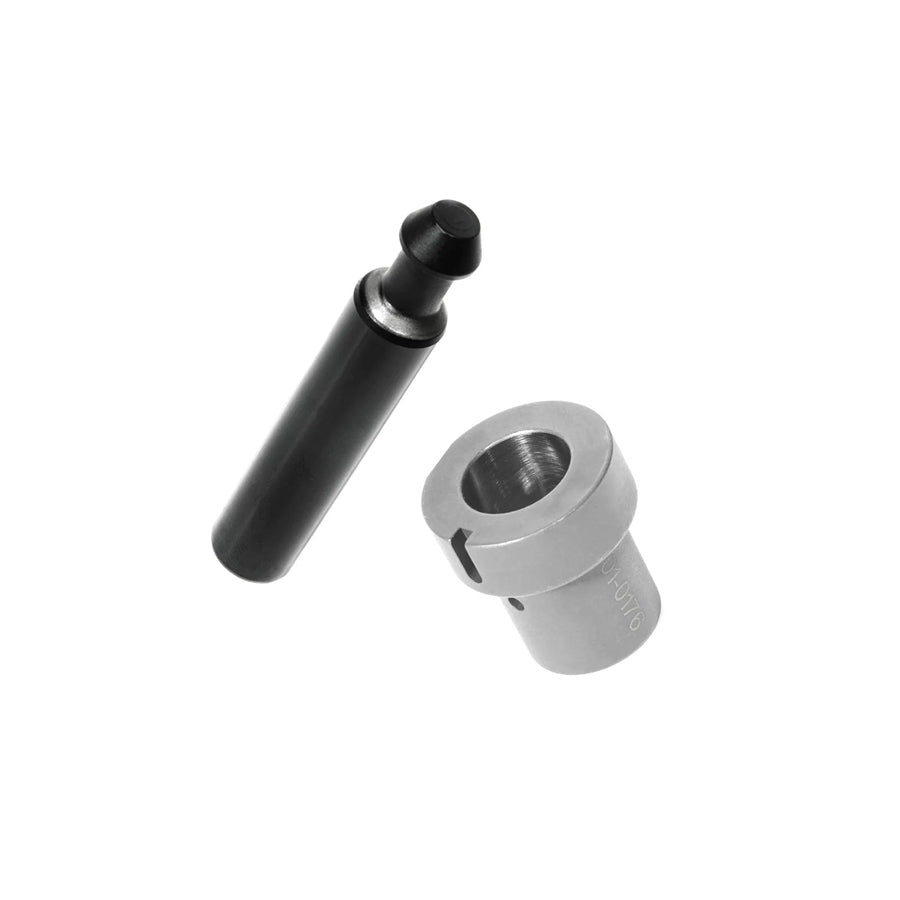

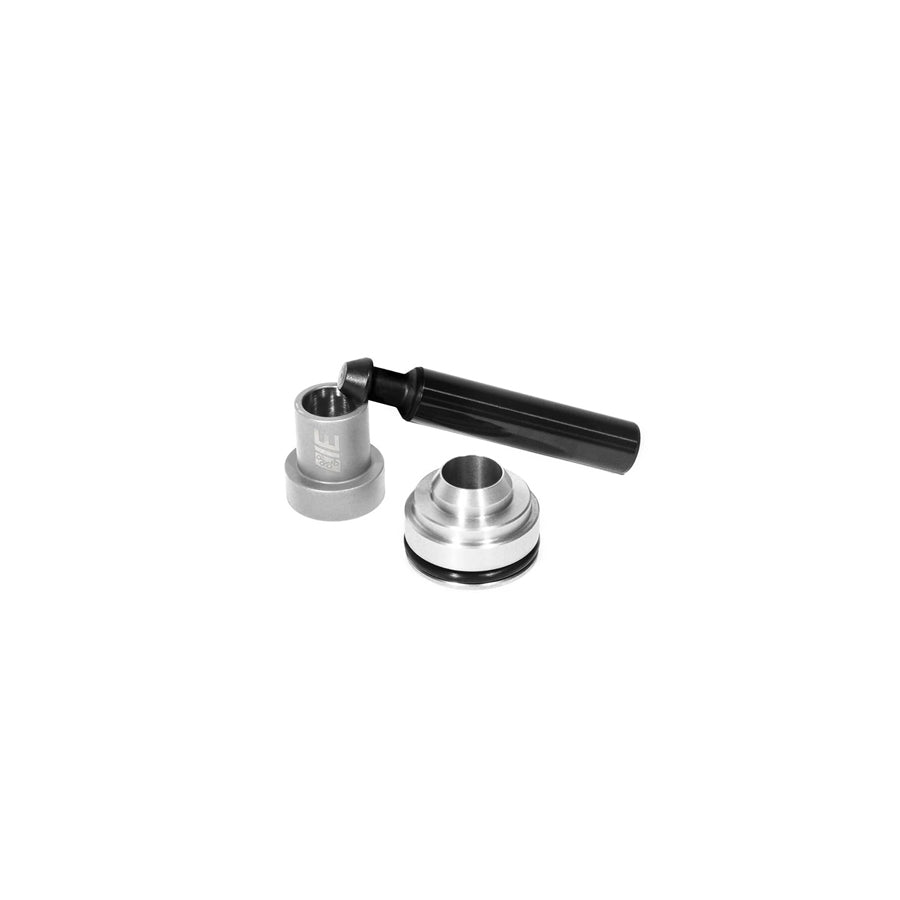

Piston & Cylinder Engineering

The piston & cylinder engineered for HPFP upgrade is a constant diameter design; meaning it maintains the outer size through the entire piston shaft. This ensures no displacement change occurs on the bottom side of the piston and protects against pressurized pulses against the shaft seal. After testing many pump designs, IE engineers determined this feature necessary for long reliable pump operation. Be wary of pump designs with a stepped diameter engineered to use the factory seal as a cost saving design. We have found these units reduce the contact between the pin and cylinder by over 50% which greatly increases wear, pin leakage, and instability of the pin stroke.

  • Constant diameter piston
  • Diamond-Like Carbon coating

Integrated Engineering Audi 3.0T High Pressure Fuel Pump HPFP Upgrade Kit (A6, A7, SQ5 & Q5) Duco Car Parts UK

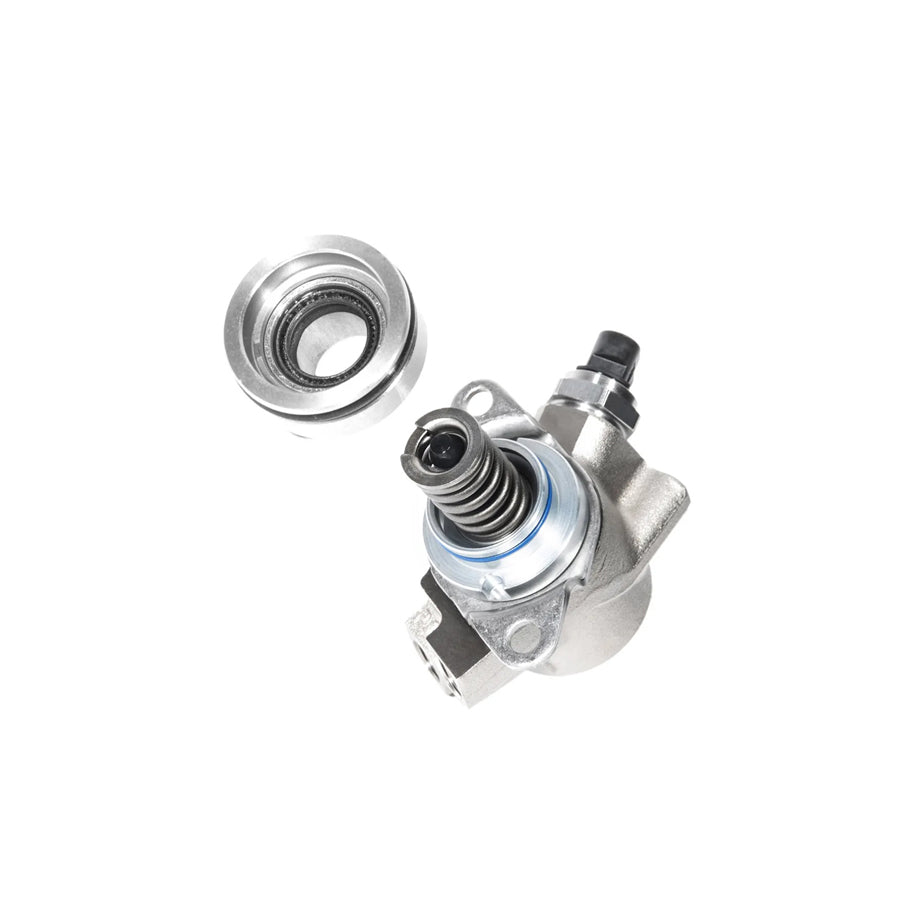

Leak Free Seal

 To prevent fuel leaking past the HPFP seal and into the crankcase, our HPFP upgrade includes a molybdenum disulphide seal used for it's stiffness and reduced friction characteristics. To further reduce the chance of failure, the seal is spring energized to provide constant outward pressure, even as the seal ages. What may seem like a small feature -in reality provides a reliable and long-life HPFP upgrade.

  • Molybdenum disulphide seal
  • Spring energized design


Integrated Engineering Audi 3.0T High Pressure Fuel Pump HPFP Upgrade Kit (A6, A7, SQ5 & Q5) Duco Car Parts UK



Audi S4/S5/A6/A7/SQ5/Q5 Supercharged Engines

    MAKE MODEL YEAR ENGINE

    AUDI

    S4

    2008-2016 (B8 & B8.5)

    3.0T Supercharged

    AUDI

    S5

    2013-2016 (B8.5)

    3.0T Supercharged

    AUDI

    S5 Cabriolet

    2009-2015 (B8 & B8.5)

    3.0T Supercharged

    AUDI

    Q5

    2008-2017 (8R)

    3.0T Supercharged

    AUDI

    SQ5

    2008-2017 (8R)

    3.0T Supercharged

    AUDI

    A6

    2012-2017 (C7)

    3.0T Supercharged

    AUDI

    A6 Allroad

    2012-2017 (C7)

    3.0T Supercharged

    AUDI

    A7

    2012-2017 (C7)

    3.0T Supercharged



    IEFUVJ1



    Manufactured by

    Integrated Engineering (IE)


    Warranty

    The IE HPFP upgrade internals allow for the largest displacement available. To accomplish this, the assembly tolerances are incredibly tight and proper installation in a clean environment is absolutely critical. Due the required specialized equipment to assemble, test, and verify our IE HPFPs they are only sold as complete assembled units in new Audi OE housings. Due to this in-house assembly process, we do include a Limited Warranty on the entire pump assembly of unlimited miles for rebuild service within 18 months from the original purchase date.
