Name: HEL BMW 2 Series G42 All Models excluding M2 2021- Brake Lines HEL Stainless Steel Braided
Brand: HEL Performance
SKU: BMW-4-690-1-FR
Price: 95.43 GBP
Availability: InStock

The HEL Performance BMW 2 Series G42 braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.

AN Hose Size	AN3, AN03, -3
Internal Diameter	3mm, 1/8"
External Diameter	8mm, 5/16"
Weight (Per Metre)	71g, 0.16lbs
Inner Material (Core)	PTFE
External Material (Overbraid)	Stainless Steel - 303/304
External Material (Outer)	PVC (Transparent or Coloured)
Fitting Material (Hose End)	Stainless Steel - 303/304
Minimum Temperature	-70°C -94°F
Maximum Temperature	250°C, 482°F
Operating Pressure	4206 PSI, 290 BAR
Burst Pressure	12618 PSI, 870 BAR
Minimum Bend Radius (90°)	19mm, 0.7"
Fluid Compatibility	Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT)
Brand	HEL Performance

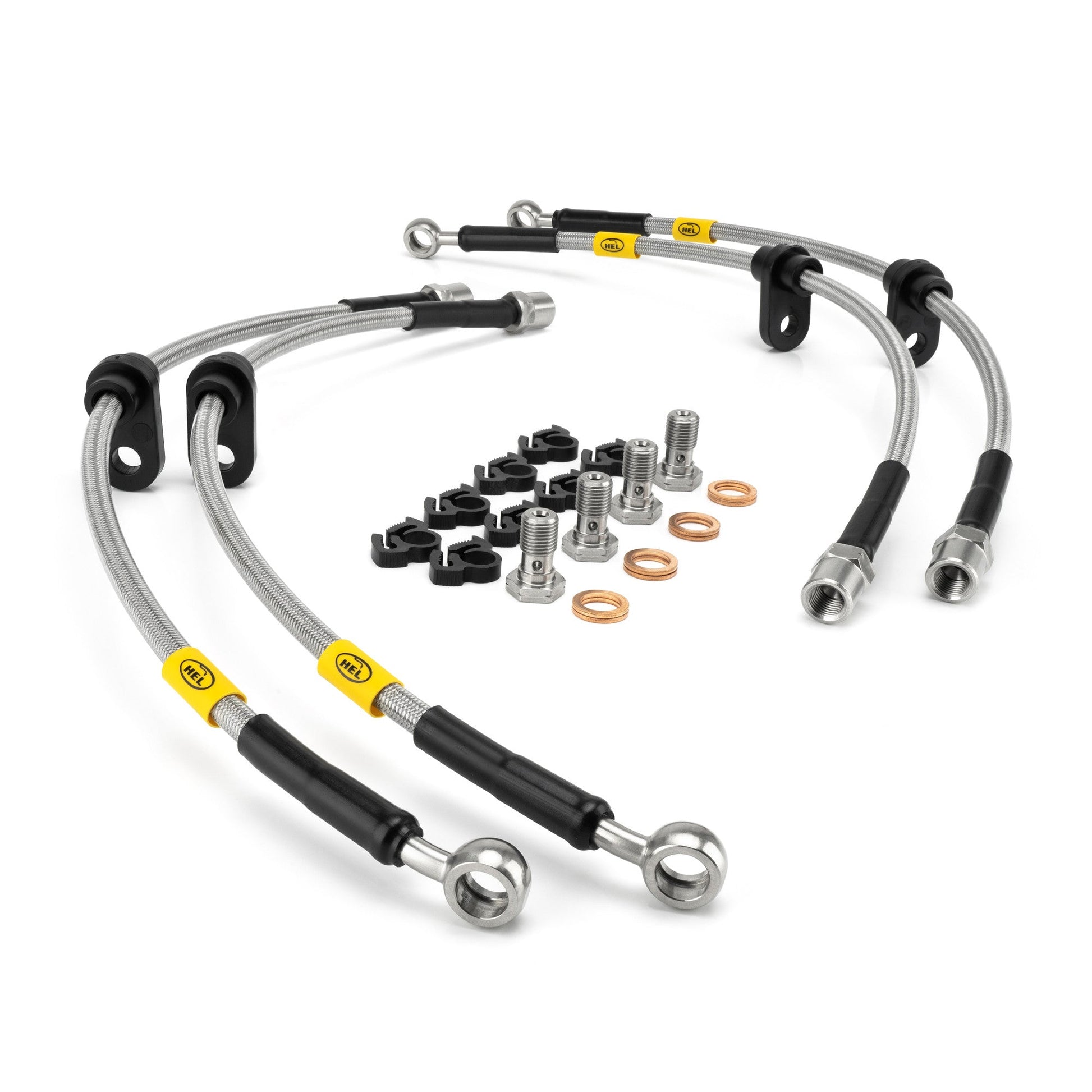

Stainless Steel Braided Brake Hoses & Fittings
Copper Crush Washers*
Mounting Components*
Lifetime Warranty
Installation Leaflet

BMW 2 Series G42 (All Models excluding M2) - (2021-)

BMW-4-690

Manufactured by

HEL Performance

Warranty

HEL Lifetime Warranty
