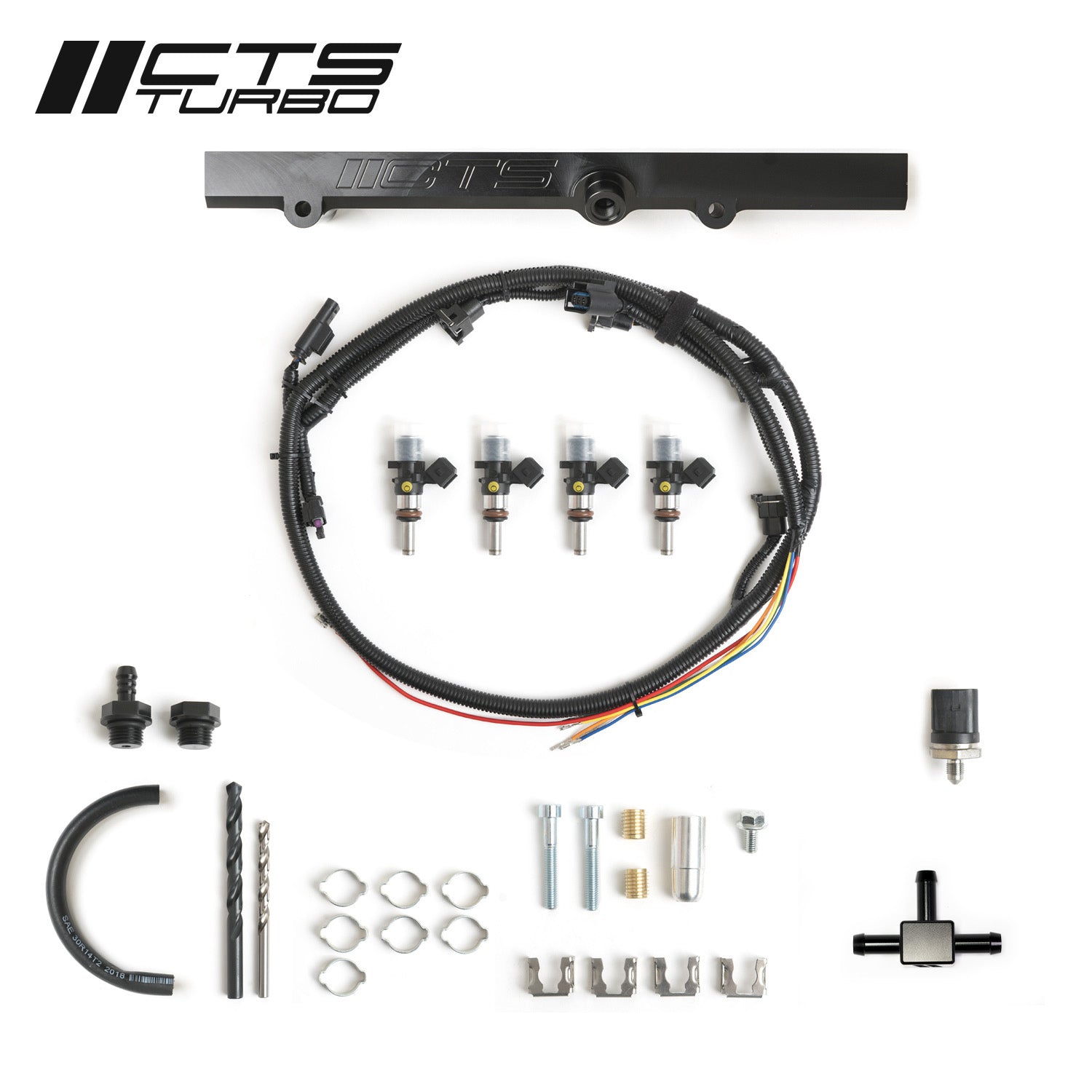

This is the complete port injection (MPI) fueling kit for MQB vehicles. This is required to get the most out of your big-turbo MQB setup. The kit allows the addition of port fuel injection on the factory North American intake manifold. All the required hardware is provided and works seamlessly with factory ECU (MPI-specific software tuning is required). CTS billet aluminum high-flow fuel rail was designed based on factory part for perfect installation and correct fuel pressure reading.

NB: please keep in mind that modifications to your intake manifold and fueling system is required. Removal and modification of intake manifold; ECU wiring connections are required – installation should be performed by an experienced technician.

Proper tuning software is required.

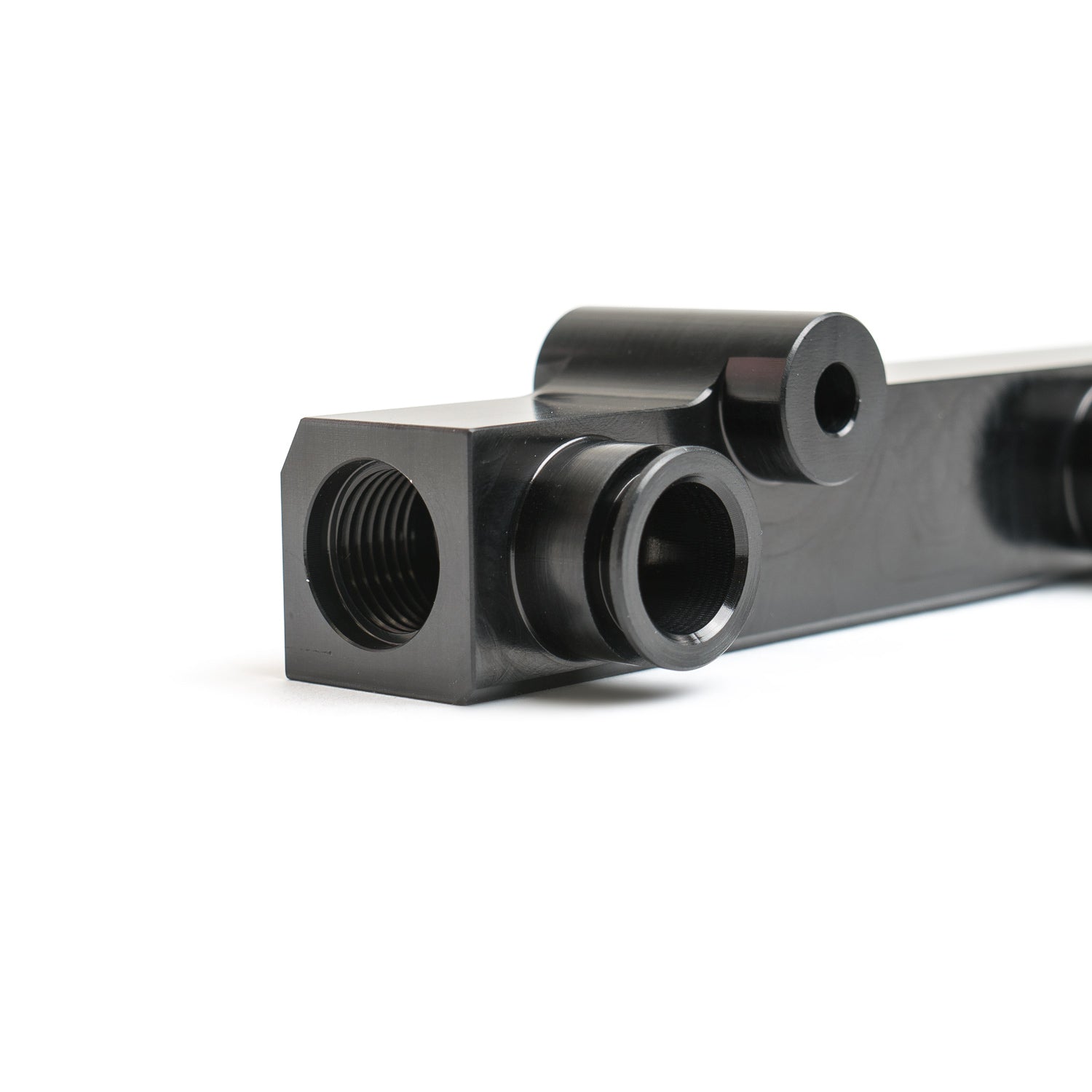

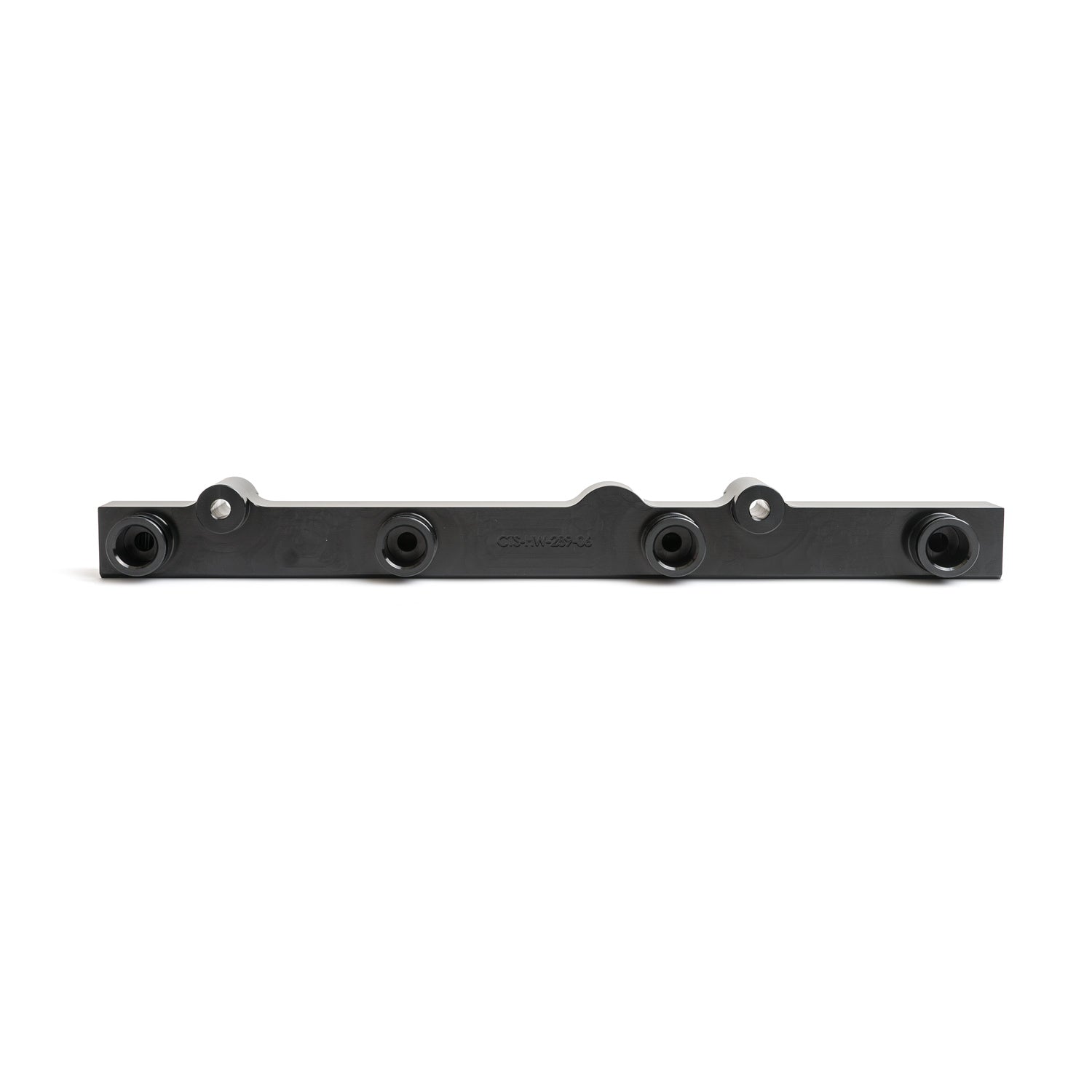

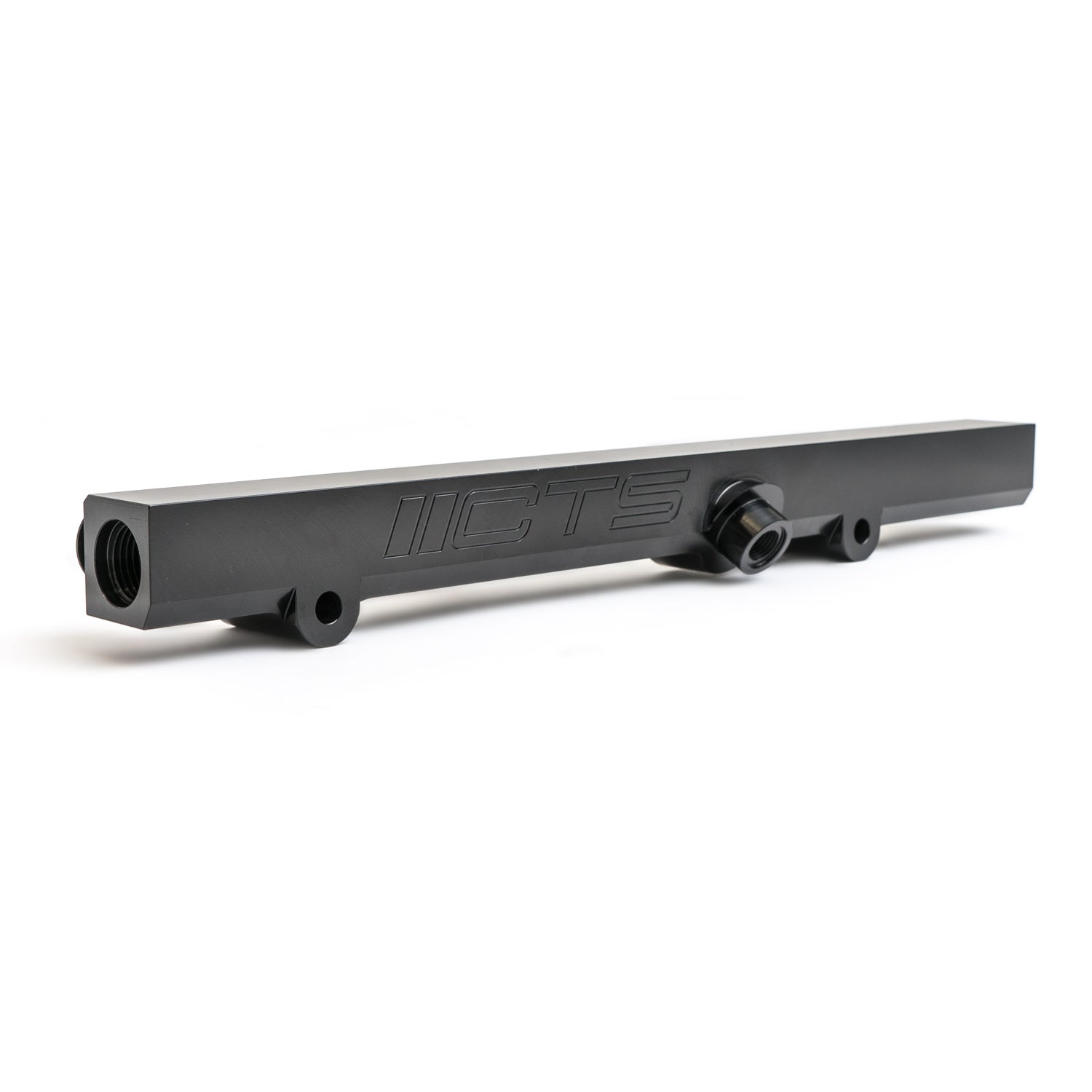

• Proprietary billet aluminum high-flow fuel rail (hard anodized for E85 fuel)

• 980cc (up to 500hp) Bosch Motorsport fuel injectors (E85 compatible) – perfect for EA888.3 engines
• Installs like factory-designed MPI for maximum functionality

• OEM fuel pressure sensor

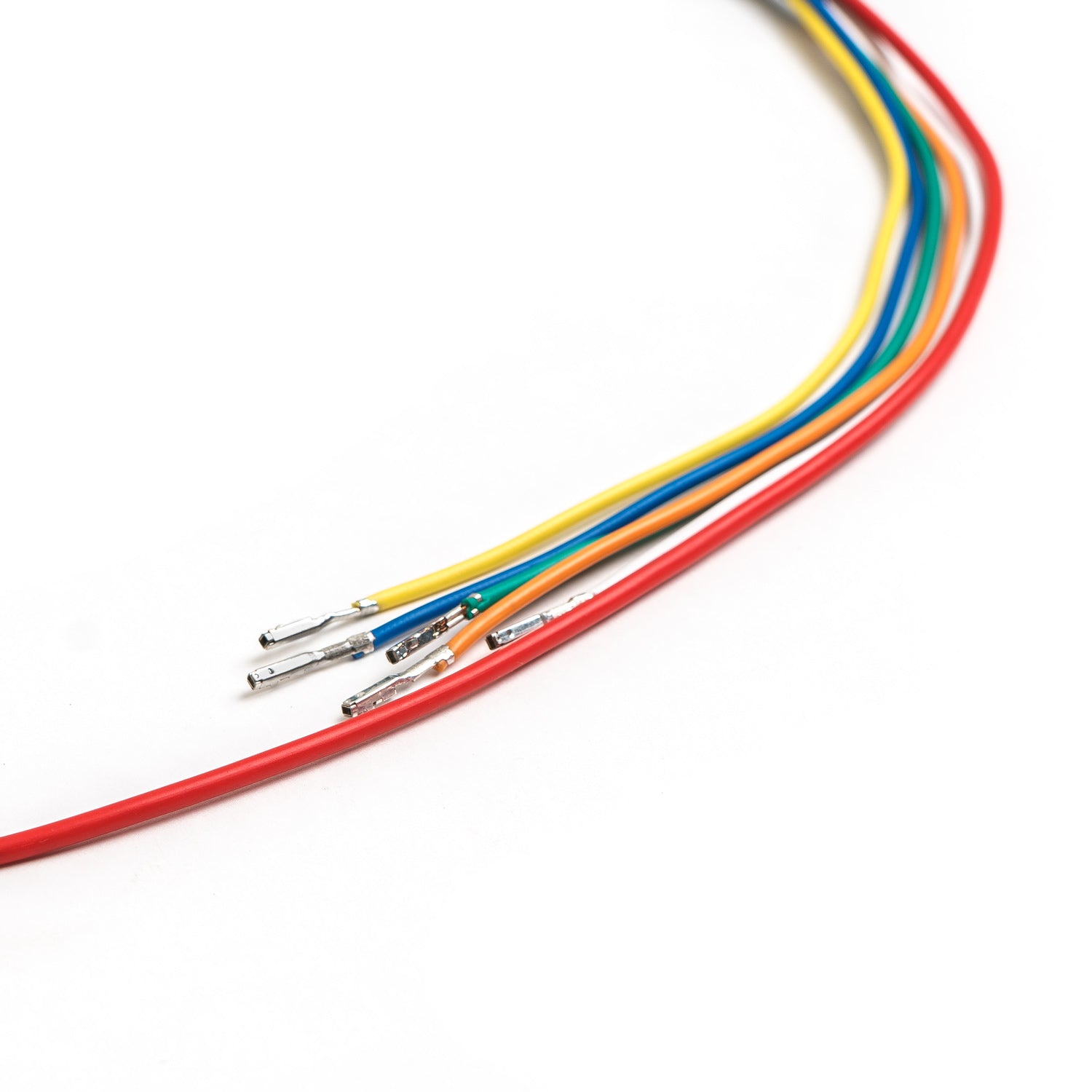

• Complete wiring harness for factory ECU integration

• Installation hardware included

• Eliminates the need to clean intake valves

Fitment for MK7/MK7.5 EA888.3 MQB vehicles:

• AUDI A3 2015 - 2020 8V

• AUDI S3 2015 - 2020 8V

• AUDI TT 2016 - 2021 8S

• VW GOLF R 2015 - 2020 MK7/7.5

• VW GOLF R 2021

• VW GTI 2015 - 2020 MK7/7.5

CTS-FPK-005-980

Manufactured by

CTS Turbo

Warranty

No warranty on ANY electrical or fuelling components.
