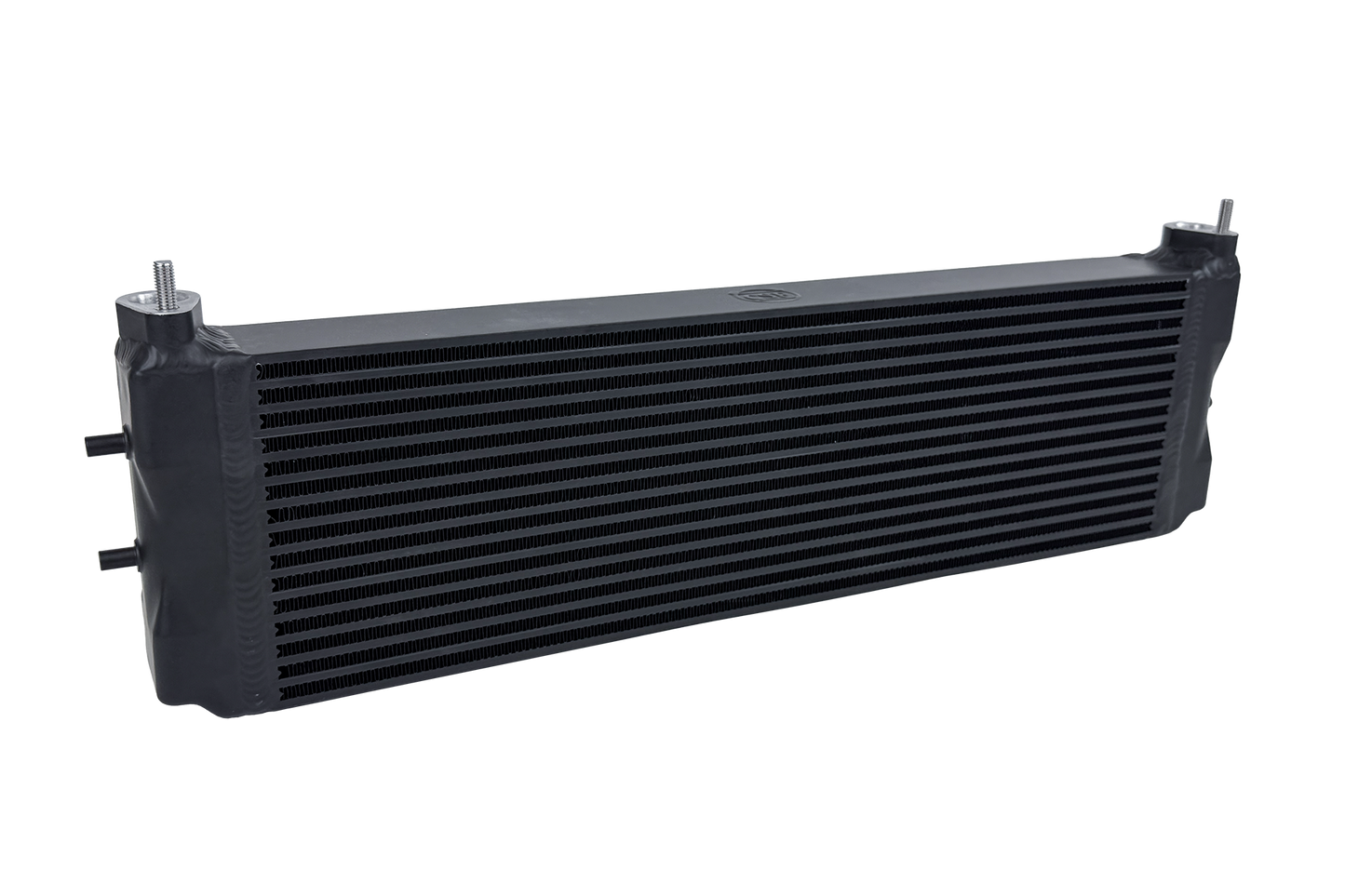

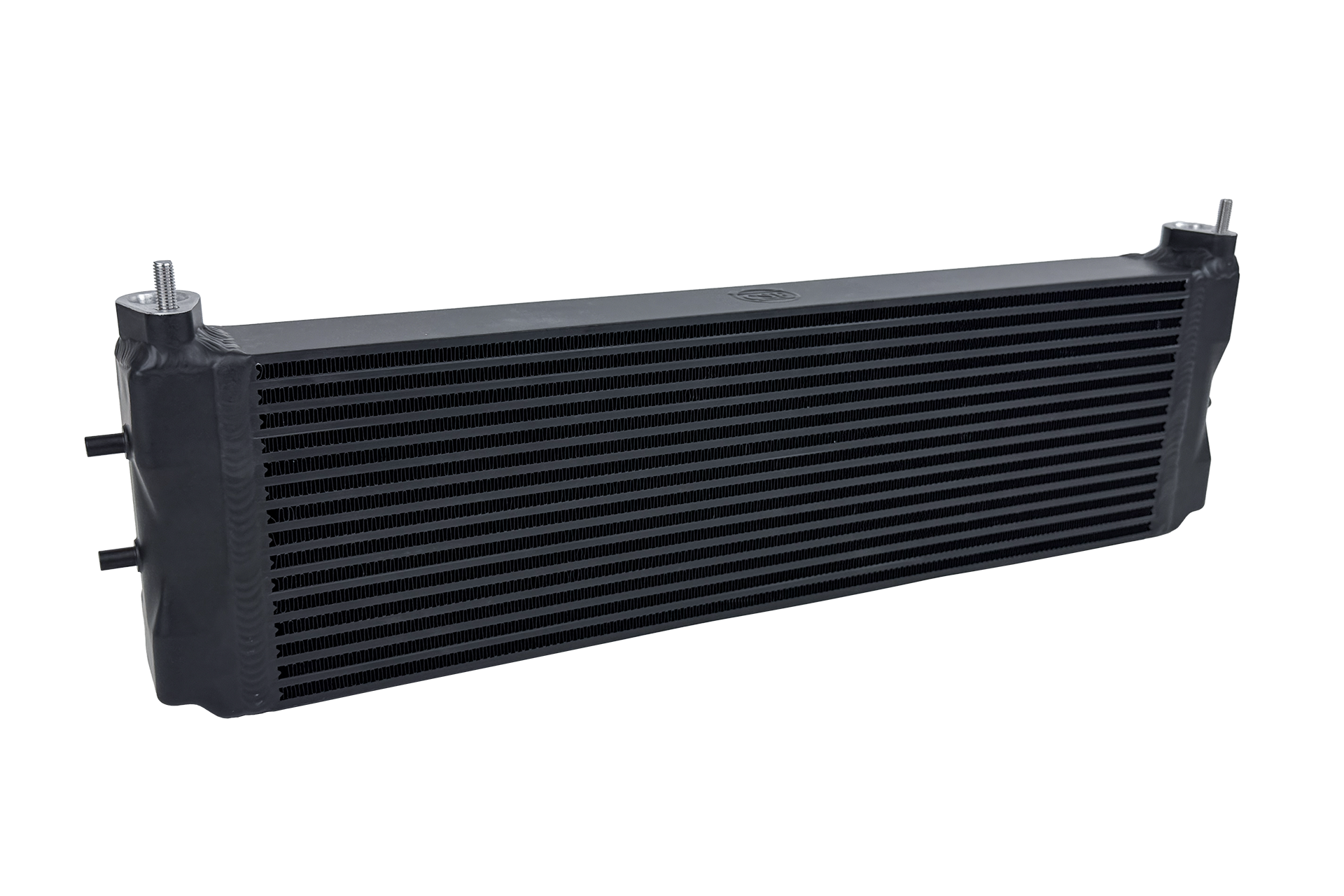

This is F1X M5/M6 & F9X M5/M8 High-Performance Engine Oil Cooler.

The BMW S63 Twin-Turbo V8 is the beating heart of the F1X M5/M6 and F9X M5/M8, delivering incredible performance. Over the years, CSF has been a key player in pushing the power limits of the S63 with its Twin Charge Air Coolers (CSF #8109 & CSF #8178). Today, many M5s, M6s, and M8s are producing well over 1000HP, but with increased power comes increased heat.

As power levels climb, so do oil temperatures, with some owners reporting temperatures exceeding 240F on hot track days. With power limits being pushed further than ever and many of these M cars aging, factory cooling systems struggle to keep up.

• Cooling Tubes: 14
• Cooling Fin Rows: 15
• Fin Height/Width: 6.5mm 8mm
• Core Thickness: 60mm (2.36 inches)
• Core Material: Aluminum
• Core Construction: Bar & Plate
• Tank Material: Aluminum
• Construction: 100% TIG Welded

• 2012-2016 BMW F10 M5 (incl. Competition)
• 2012-2018 BMW F1X M6 (incl. Competition)
• 2013-2019 BMW F06 M6 (incl. Competition)
• 2017-2023 BMW F90 M5 (incl. Competition)
• 2020+ BMW F9X M8 (incl. Competition)
• 2019+ BMW G1X M850i xDrive



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

CSF-8317

Manufactured by

CSF Radiators
