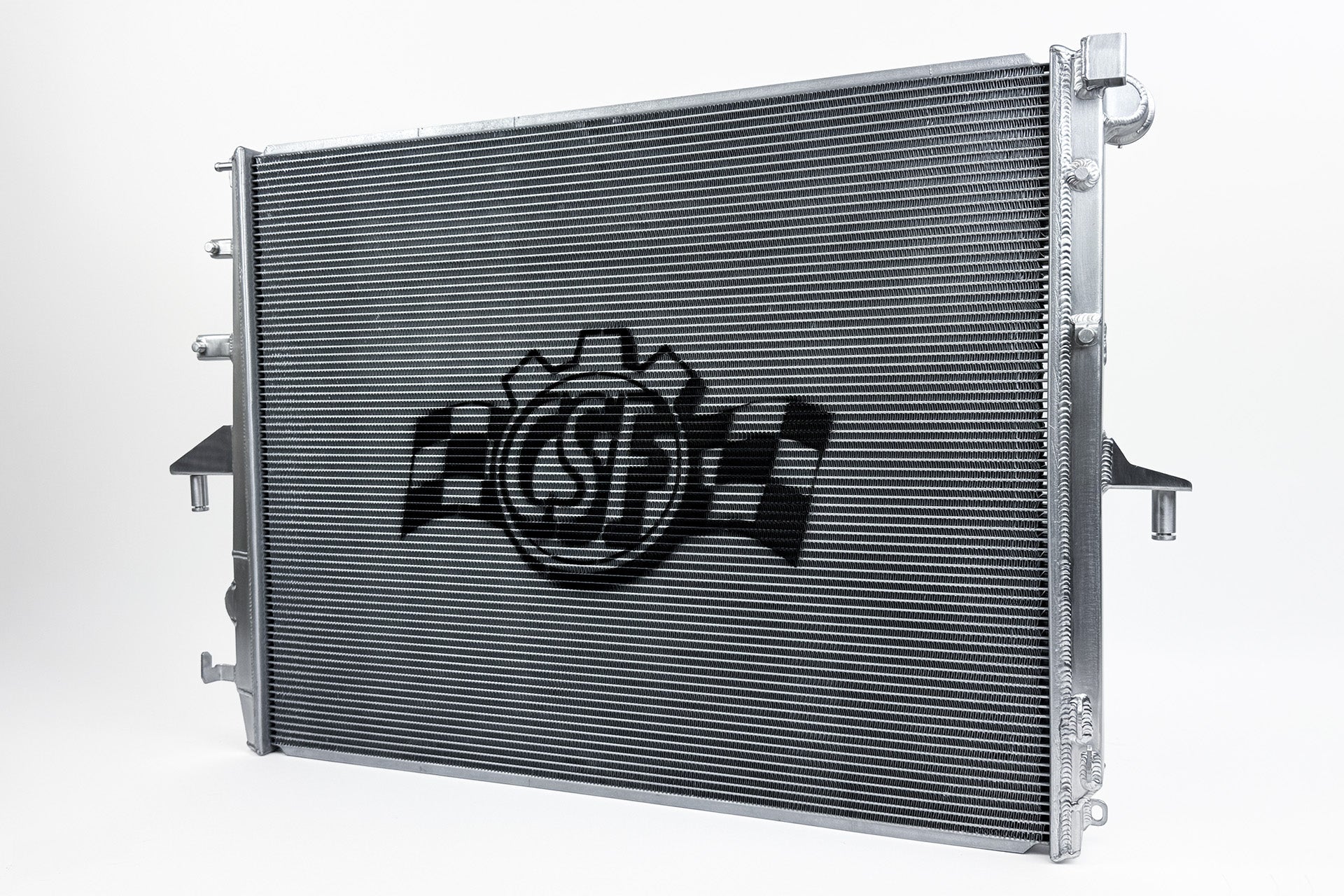

This is High-Performance All-Aluminum Engine Water Radiator for 07-08 Nissan 350Z (HR Engine).

B-Tube technology, Unlike a regular oval shape O type radiator tube, CSF uses a specially engineered tube in a shape of a B. These B-tubes are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminium material (better cooling efficiency) because this design is actually stronger than normal O shape tubes that are welded. The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes. You get the efficiency of 2 smaller tubes vs. 1 large tube within the same space criteria. With B-tubes you are able to get dual liquid laminar flow. High Efficiency Multi Louvered Fin, CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

07-08 Nissan 350Z (HR Engine)

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

CSF-7022

Manufactured by

CSF Radiators
