Brembo
Brembo 1M-.8069A 6-Piston Billet Monobloc Calipers 355mm (14'') 2-Piece Discs Brake Disc (Front)
Brembo 1M-.8069A 6-Piston Billet Monobloc Calipers 355mm (14'') 2-Piece Discs Brake Disc (Front)
Couldn't load pickup availability
In Stock & ready for next working day delivery
Estimated lead time 2-3 working days. Subject to availability.
Get the best deal with Duco's Price Match Policy
Caliper
| Caliper Body | : | Billet Monobloc Radial Mount |
| Caliper Piston Configuration | : | 6-Piston |
| Caliper Piston Design And Insert Type | : | Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert |
Disc
| Disc Material/Finish | : | Advanced High Carbon Alloy / Corrosion Resistant Plating |
| Disc Diameter | : | 328mm |
| Disc Width (Measurement) | : | 28mm |
| Disc Air Gap (Measurement) | : | 17mm |
| Disc Annulus (Measurement) | : | 54mm |
| Disc Construction | : | 2-Piece Disc Assembly |
| Disc Vane Design (Measurement) | : | Vented Curved 48 Vane |
| Disc To Hat Mounting System | : | Floating D-Bobbin with Anti Rattle Spring |
Friction Material
| Pad Compound | : | Brembo High Performance FM1000 |
| Pad Volume / Surface Area | : | 48.2 | 53.6 |
- Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
- Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
- BRZ (ZD8)
Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!
Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

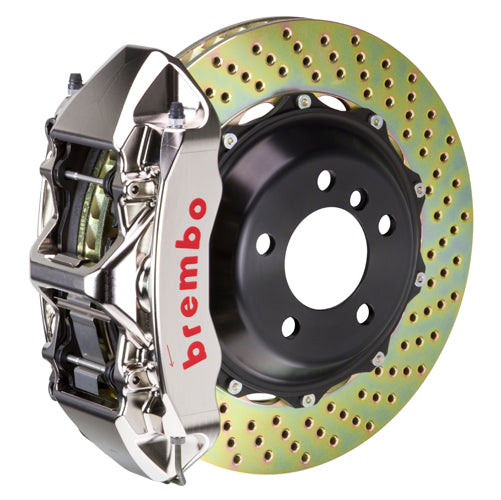

BREMBO-1M1.8069AR (Cross Drilled / Nickel Plated)
BREMBO-1M2.8069AR (TY1 / Nickel Plated)

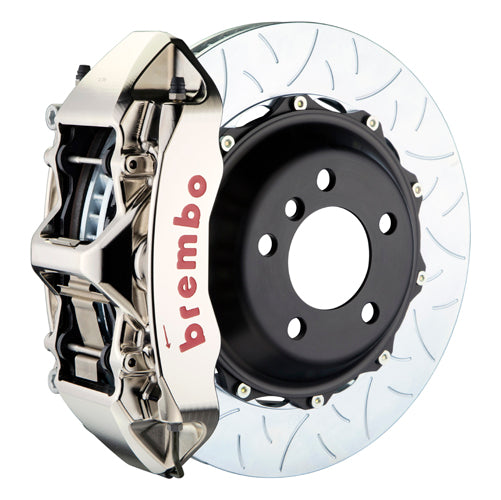

BREMBO-1M3.8069AR (TY3 / Nickel Plated)
Manufactured by
Brembo
