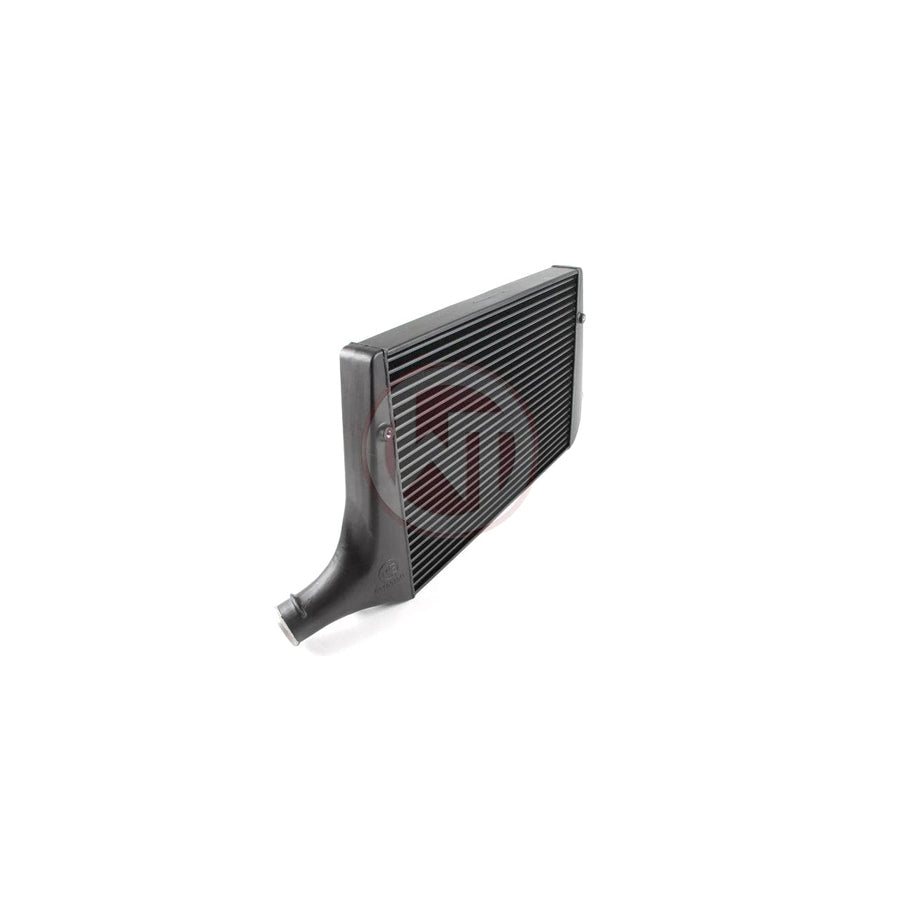

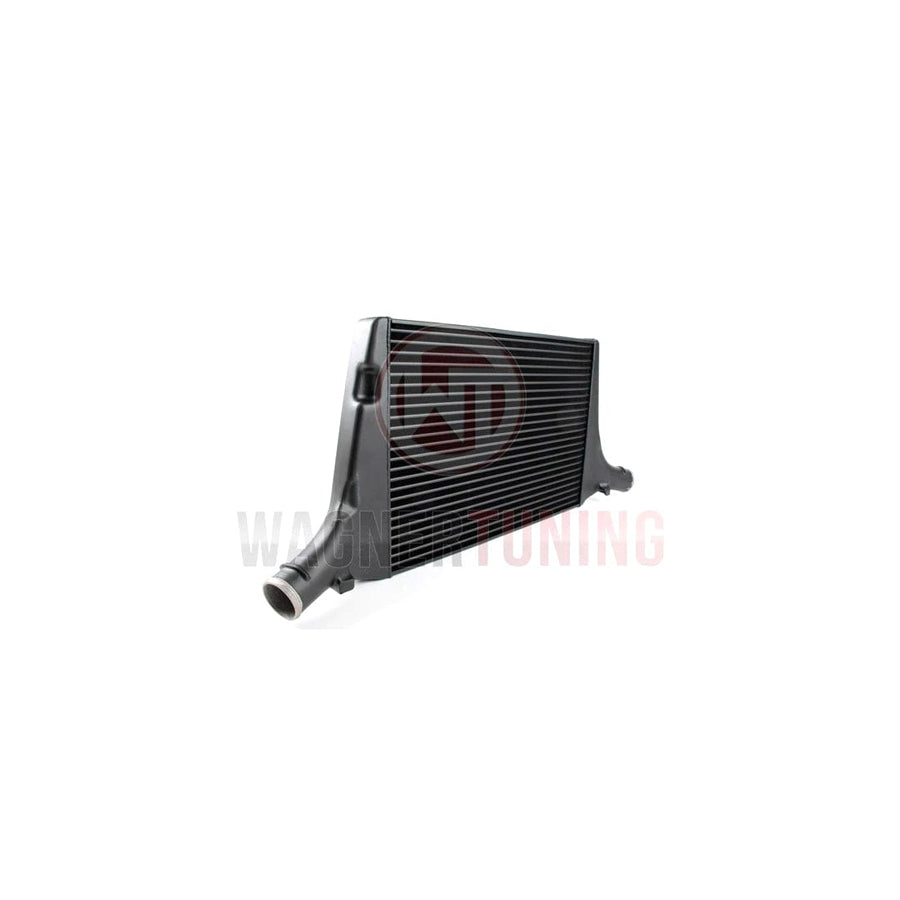

This high performance intercooler has the following core dimension 610mm x 440mm x 65mm providing a 122% larger cooling surface and 92% more charge air volume compared to the original intercooler.

Our newly developed competition core provides ample airflow to the adjacent components (eg the water radiator) and is also very lightweight in construction. The end tanks of the intercooler are made of free form cast aluminium and have been optimized in CAD. With the help of additional air guides inside the inlet we achieve uniform filling of the intercooler. This gives excellent cooling with minimum back pressure.

This kit is the ultimate unit for extreme road and racing. The intercooler and the original cross member form a stable unit and weighs only 9.1 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance!

Audi SQ5 3.0 TDI

Comparisons

OEM Intercooler: Cooling Surface 1207cm² / Charge-Air-Volume 9.05L
WT EVO 2 Competition: Cooling Surface 2684cm² / Charge-Air-Volume 17.4L

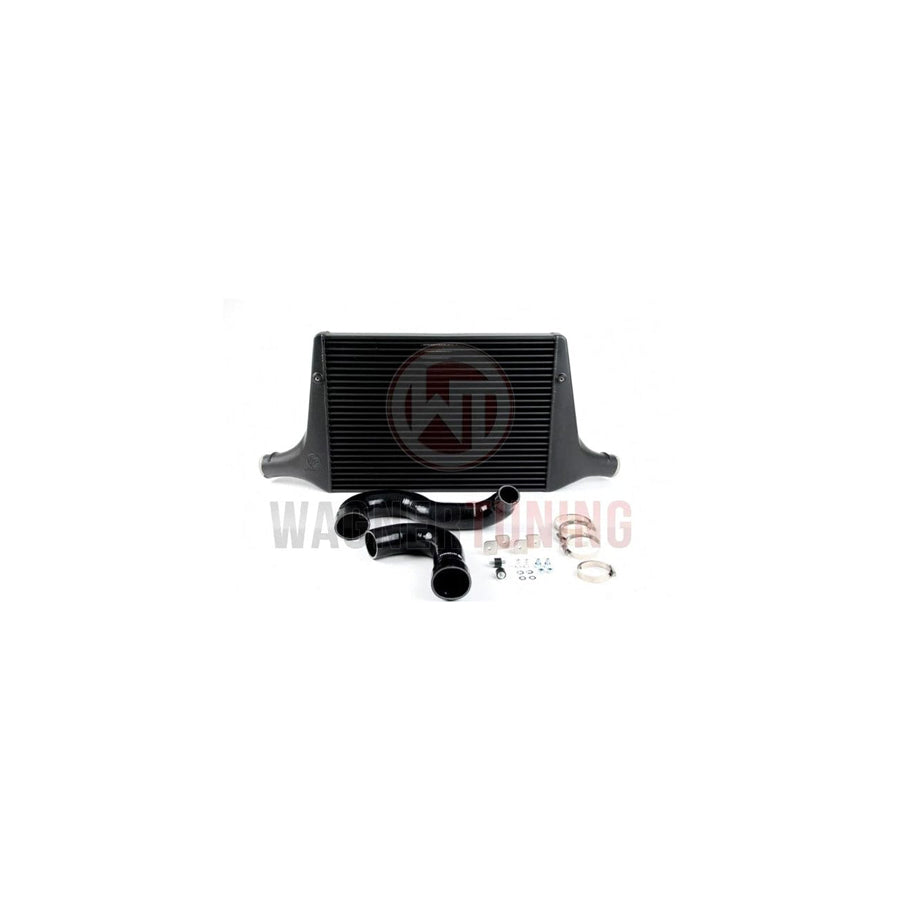

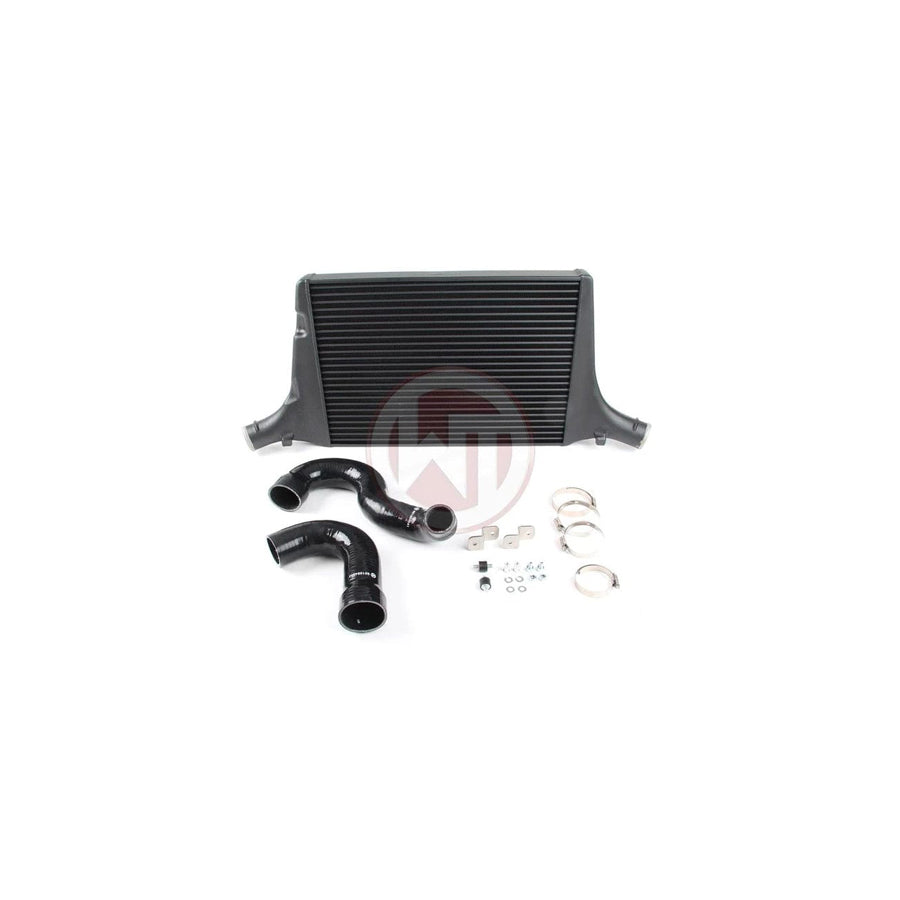

1 Intercooler including cross member
2 Silicone hoses
1 Set mounting material
1 Installation manual

200001084

Manufactured by

Wagner

Warranty

Duco Car Parts UK Lifetime Warranty
