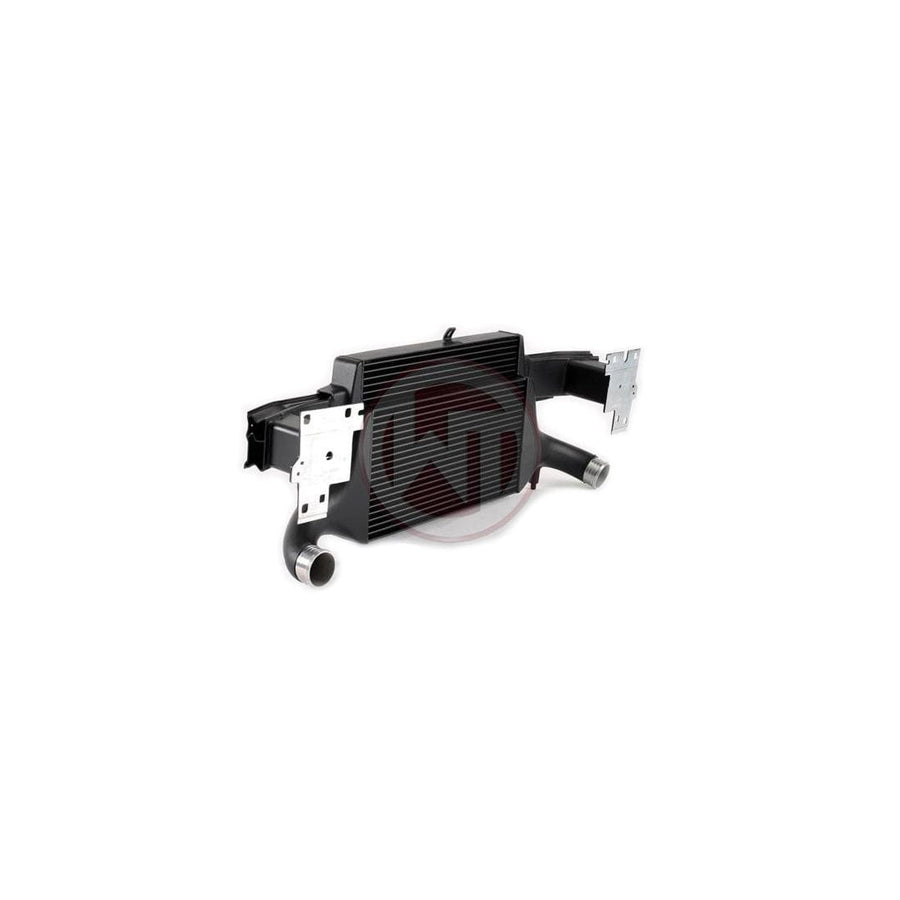

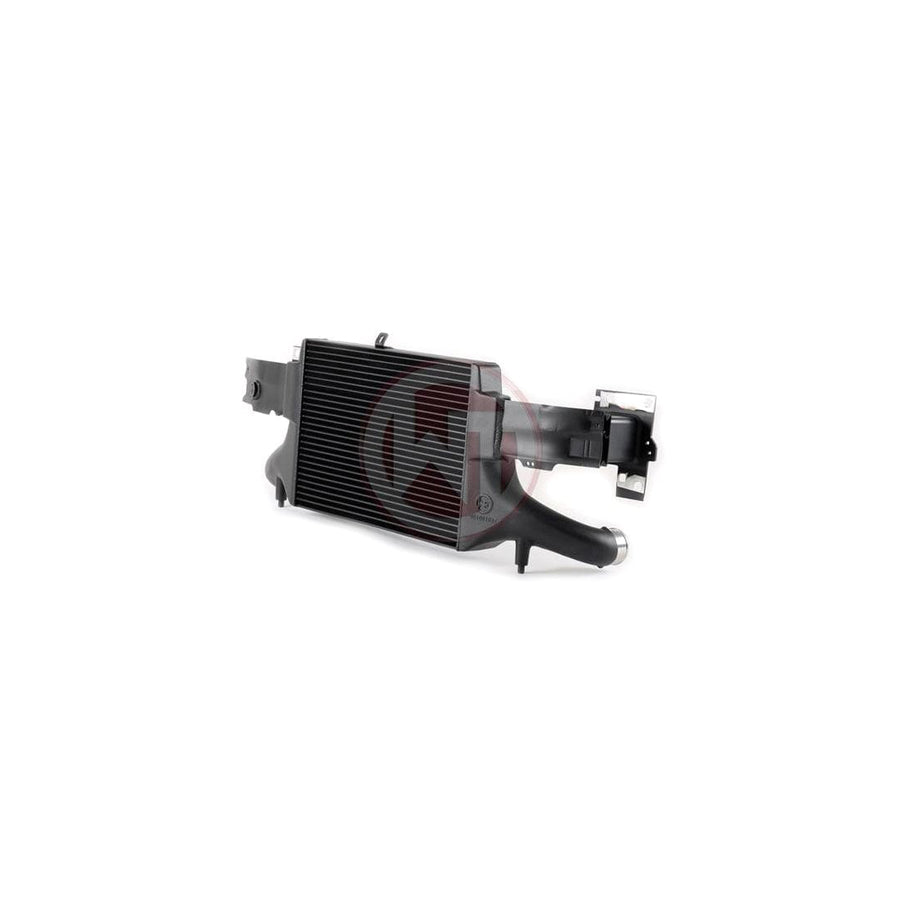

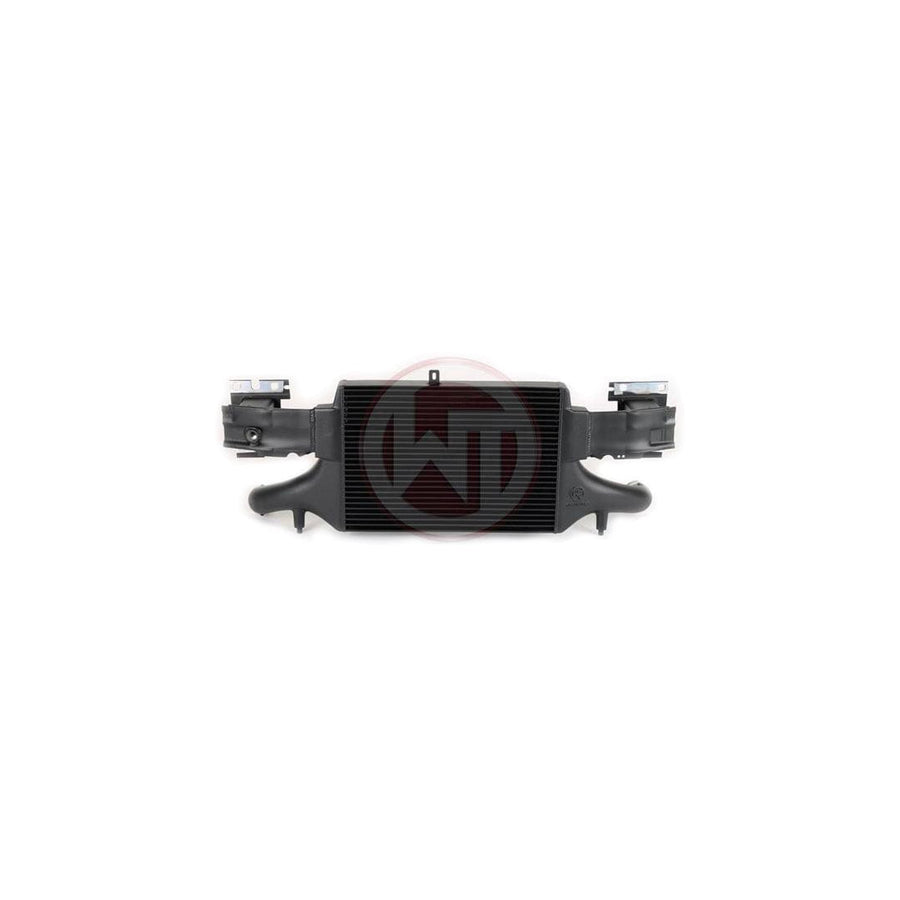

Competition Intercooler kit EVO3 for Audi RS3 8V

This high performance intercooler has the following core dimension 515mm x 367 [274] mm x 95mm providing a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler.

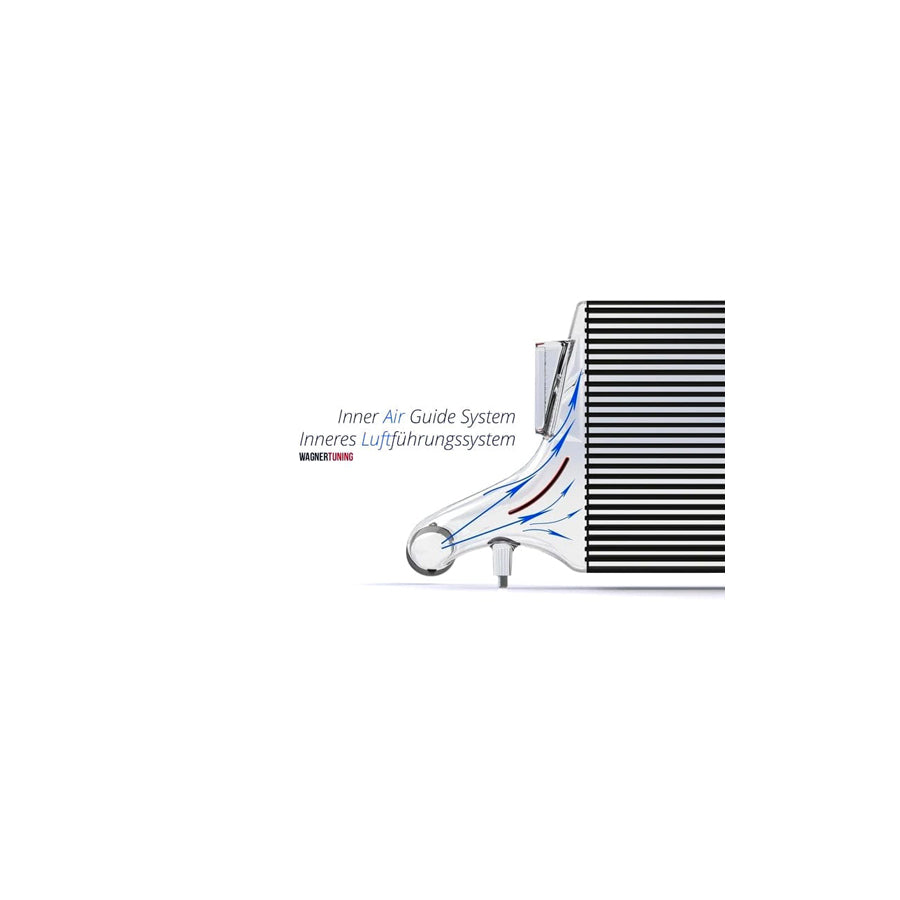

Our newly developed competition core provides ample airflow to the adjacent components (eg the water radiator) and is also very lightweight in construction. The end tanks of the intercooler are made of free form cast aluminium and have been optimized in CAD. With the help of additional air guides inside the inlet we achieve uniform filling of the intercooler. This gives excellent cooling with minimum back pressure.

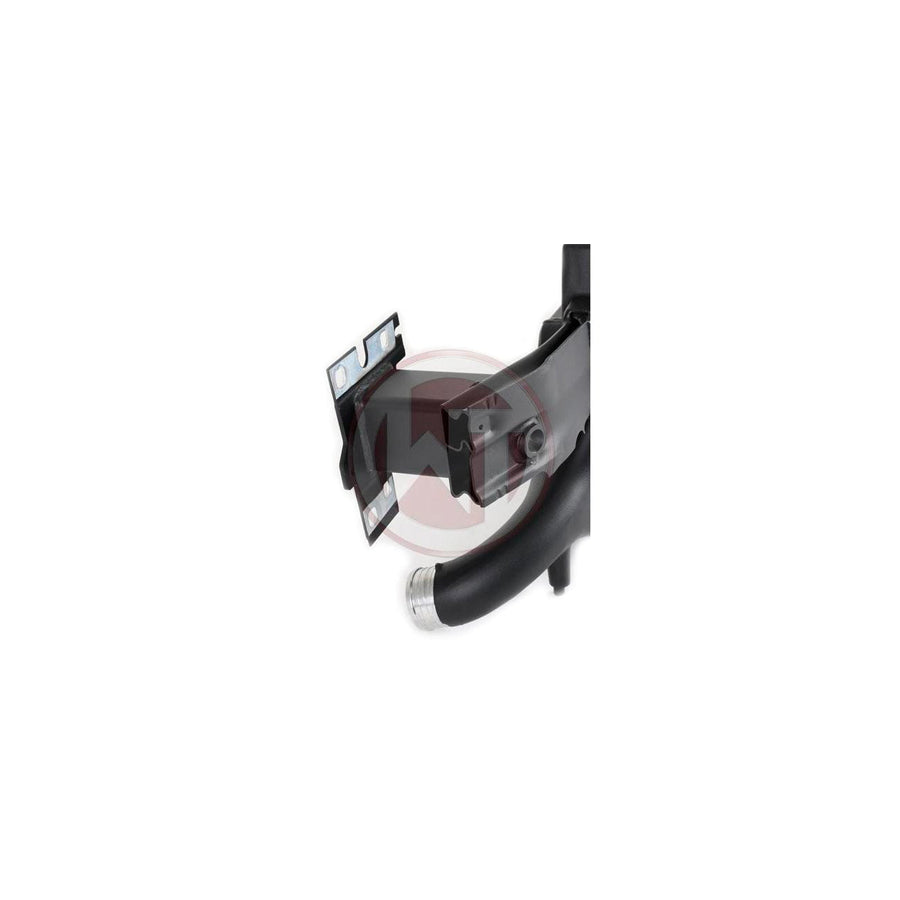

This kit is the ultimate unit for extreme road and racing. The intercooler and the original cross member form a stable unit and weighs only 11.7 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance!

Please Note

The integrated screw connection for the towing eye on the "Competition Intercooler Kit EVO 3 | #200001081 & #200001136" is not suitable for strapping the vehicle on a dyno.

WE STRONGLY ADVISE NOT TO USE THE TOWING LUG FOR ANY OTHER PURPOSE. IT IS ONLY THERE TO TOW THE VEHICLE.

1 Intercooler including cross member
1 Set mounting material
1 Installation manual

• Audi RS3 8V Sportback 270KW/367PS 04/201504/2016
• (*not compatible for vehicles with Adaptive Cruise Control)
• Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+
• This unit if for vehicles without adaptive cruise control ACC

If your car has ACC please use version 200001081-ACC

Comparisons

OEM Intercooler: Cooling Surface 1024cm² / Charge-Air-Volume 8.2L
WT EVO 3 Competition: Cooling Surface 1890cm² / Charge-Air-Volume 16.5L

200001081

Manufactured by

Wagner

Warranty

Duco Car Parts UK Lifetime Warranty
