HKS 12001-KZ001 GT2 Supercharger Pro Kit | 2016+ Mazda MX-5 Miata
HKS 12001-KZ001 GT2 Supercharger Pro Kit | 2016+ Mazda MX-5 Miata
Couldn't load pickup availability
In Stock & ready for next working day delivery
Estimated lead time 2-3 working days. Subject to availability.
Get the best deal with Duco's Price Match Policy

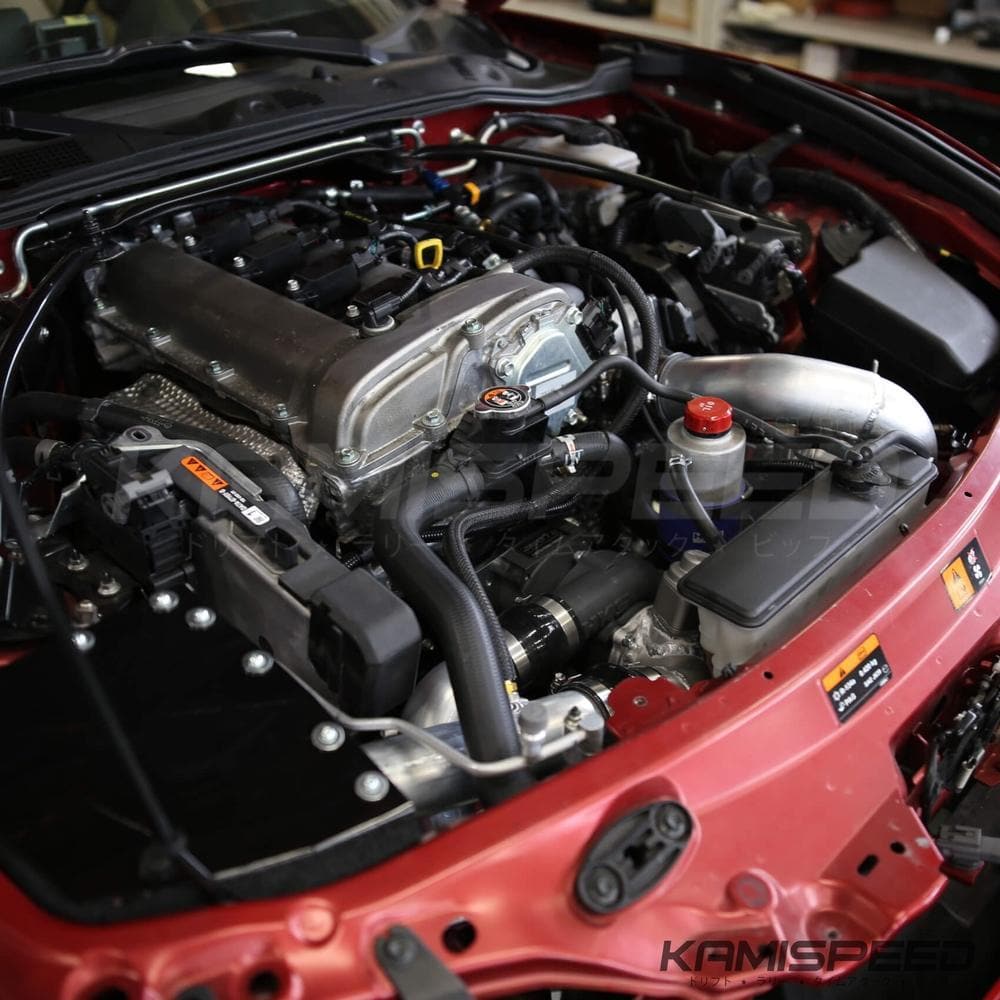

The 2016+ Mazda MX-5 Miata is a great performance application. The weight distribution allows for a great handling vehicle though some think it lacks in power. In order to address this problem HKS USA has designed and built a S/C Pro Kit for the ND Chassis. The result is less than 50 lbs of added weight with at least 30% more power and torque.
This kit is comprehensive and includes almost everything you need, down to spark plugs and a windshield washer relocation tank kit. The intake system was particularly well designed, with a closed intake box to keep temperatures down and contain unnecessary noise. Due to the intercooler and intake piping, this kit requires a smaller size battery (such as Odyssey PC680) but HKS USA will provide the battery mounting kit.

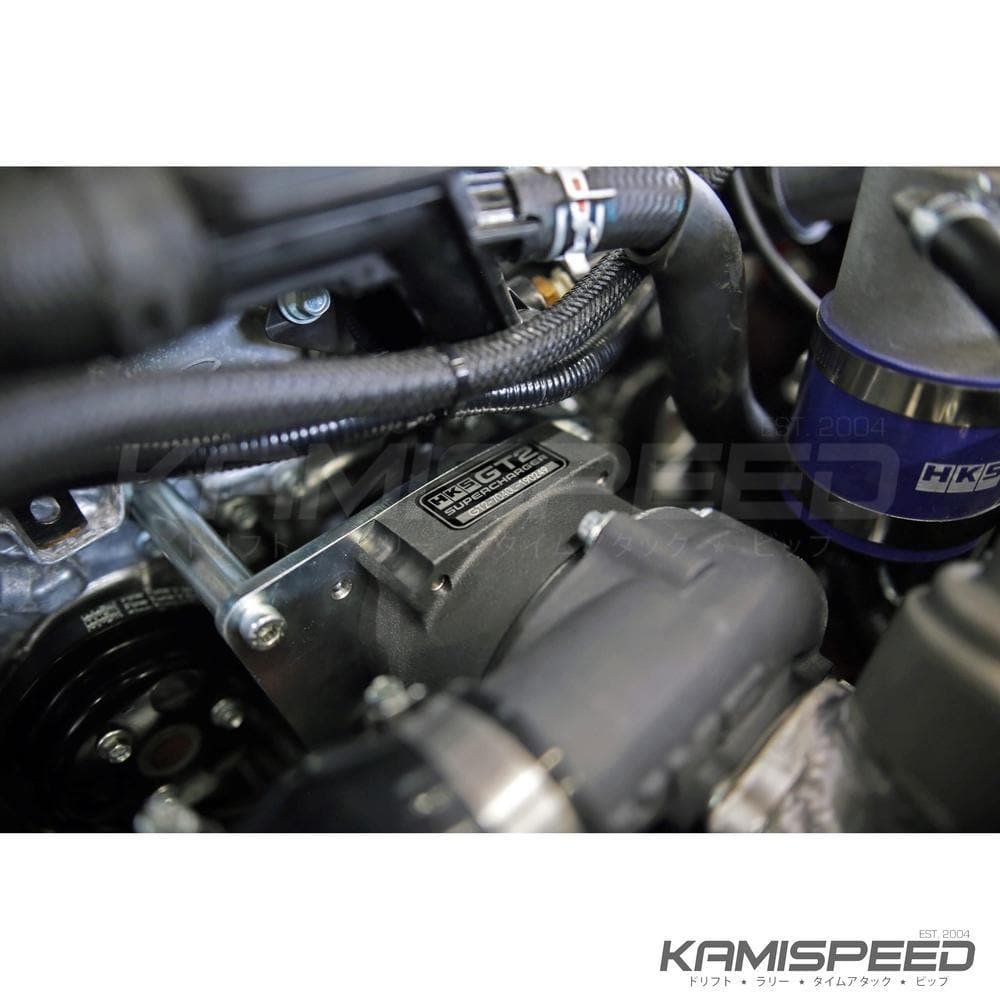

Like all HKS GT2 supercharger kits, the system is fully enclosed and Features a closed loop traction fluid reservoir and oil cooler to maintain proper operating temperatures. So no worries about track junkies who might be concerned about high performance reliability.
NOT FOR SALE OR STREET USE IN CALIFORNIA & CARB STATES.

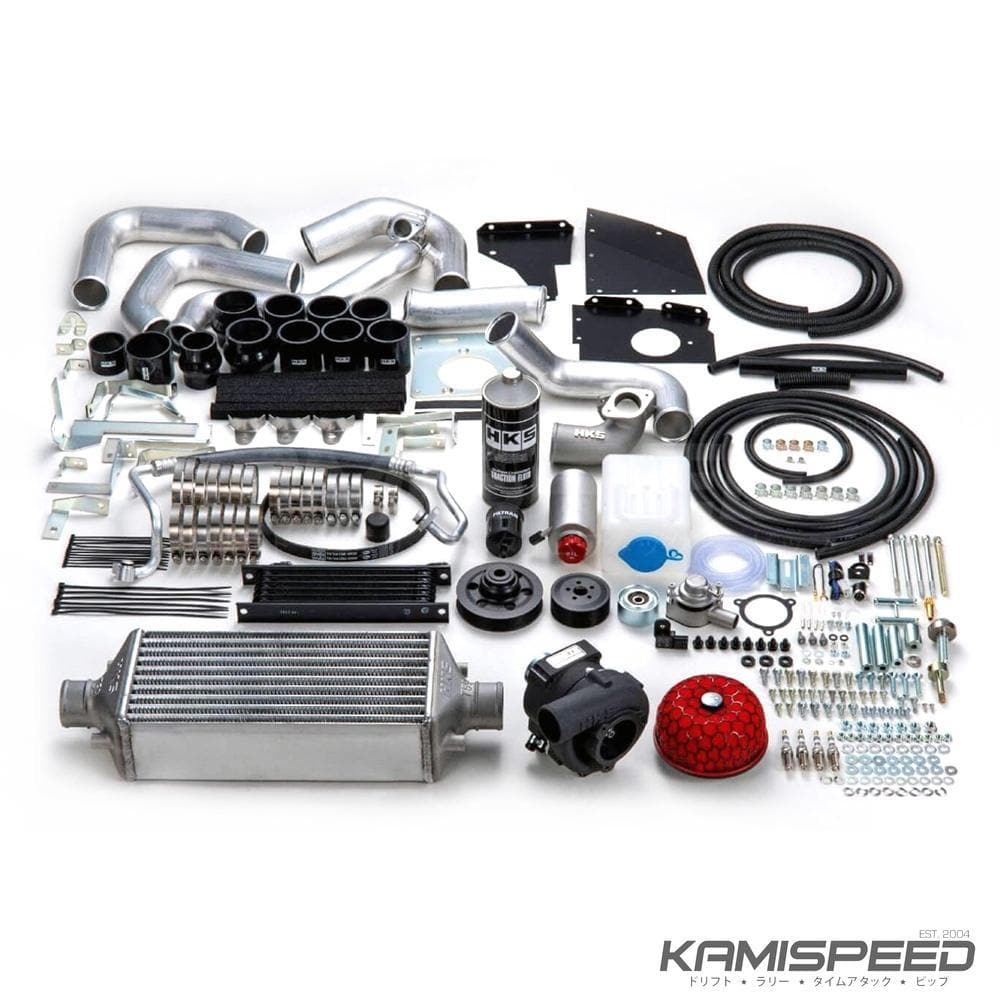

Kit Includes:
- Supercharger Assembly (centrifugal style S/C)
- Supercharger Traction Kit (Oil + Oil Cooler)
- Supercharger Installation Bracket
- Intake System (piping and filter)
- Closed Intake box with sound insulation
- Bypass valve
- Intercooler & Intercooler Piping
- HKS 50003-M45HL Spark Plugs
- Washer Tank relocation kit
- Other Bracket Parts for installation
Applications
- Mazda MX-5 Miata [ND-USDM 2.0L LHD Model] (2016, 2017, 2018, 2019*)
*2019 model has not been tested but should work
- Uses GT2 centrifugal Style Supercharger (7040L) which allows for optimal layout
- Over 30% WHP/TQ increase across power band (80mm pulley can be used for more)
- Includes all mechanical parts, including new spark plugs and washer fluid tank relocation kit
- Small Battery Mount Kit will be provided (recommended to use with Odyssey PC680 battery which is not included) - smaller size battery must be used
- Engine management not included (EcuTek recommended)
- Custom intake box included with heat/sound shielding for optimal power
- Proudly Made in Japan
Extended Information
- Kit Type: Bolt-on Super Charger
- S/C Type: GT2-7040L centrifugal
- Engine Code: PE-VPR
- Chassis Code: ND (USDM model)
- Additional Requirements: ECU Tune + Smaller Battery
- Note: More Power Achievable with optional 80mm pulley
Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!
Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.
HKS-12001-KZ001
Manufactured by
HKS
